CFG Pile Construction: Process, Quality Control, and Key Considerations

Introduction

CFG piles (Cement Fly-ash Gravel piles) are a widely used ground improvement technique in building construction due to their cost-effectiveness, ease of construction, and reliable performance. These low-strength concrete piles are suitable for reinforcing soft soils such as clay, silt, and uncompacted artificial fill. By transferring loads through soil-pile interaction, CFG piles enhance foundation stability while maintaining economic feasibility.

CFG Pile Construction Process

1. Construction Preparation & Surveying

• Review geological reports and design parameters to finalize construction methods.
• Clear vegetation, debris, and underground utilities from the site.
• Establish control points and mark pile locations using bamboo sticks/lime powder.
• Verify site elevation and obtain approval before proceeding.

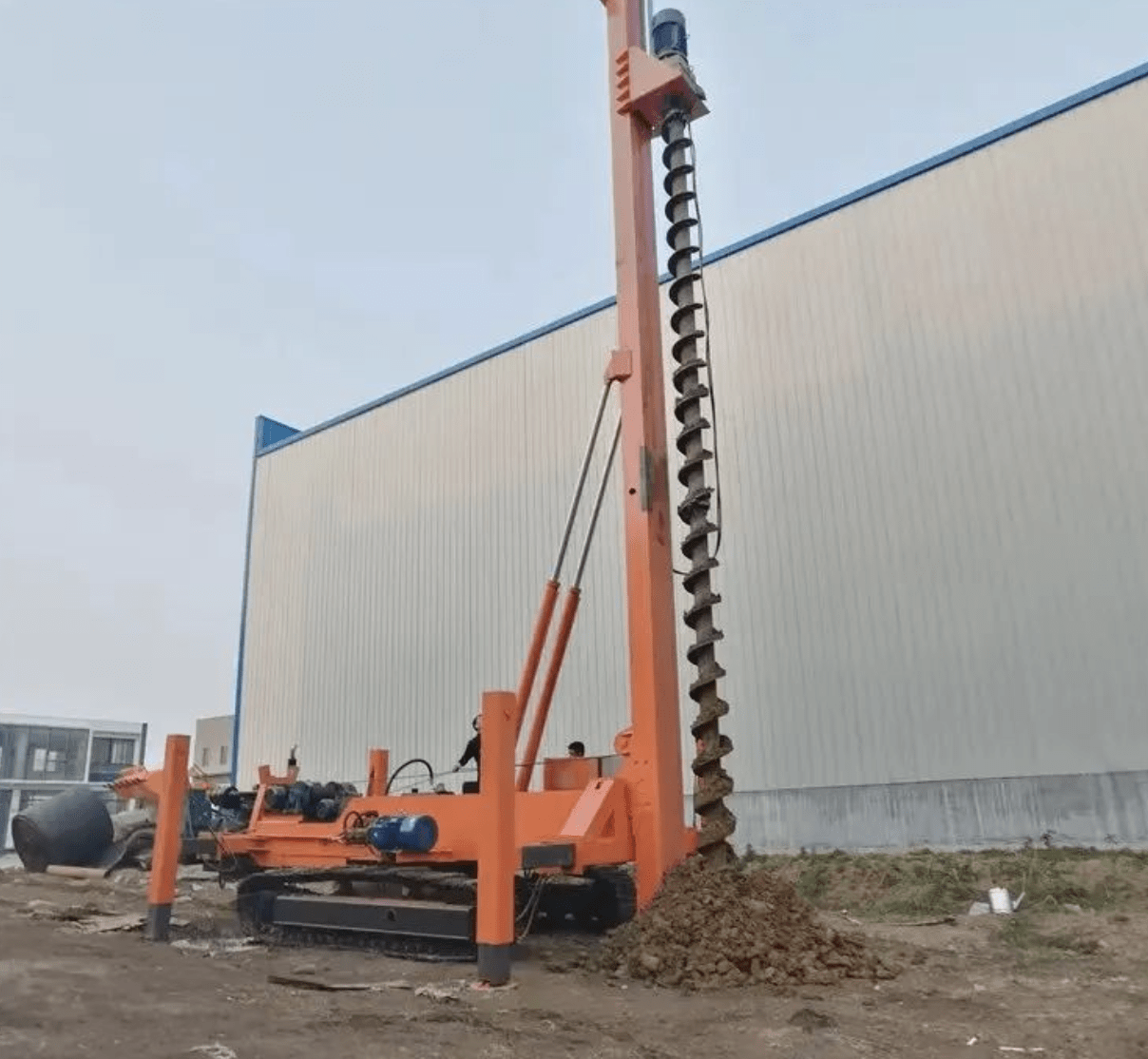

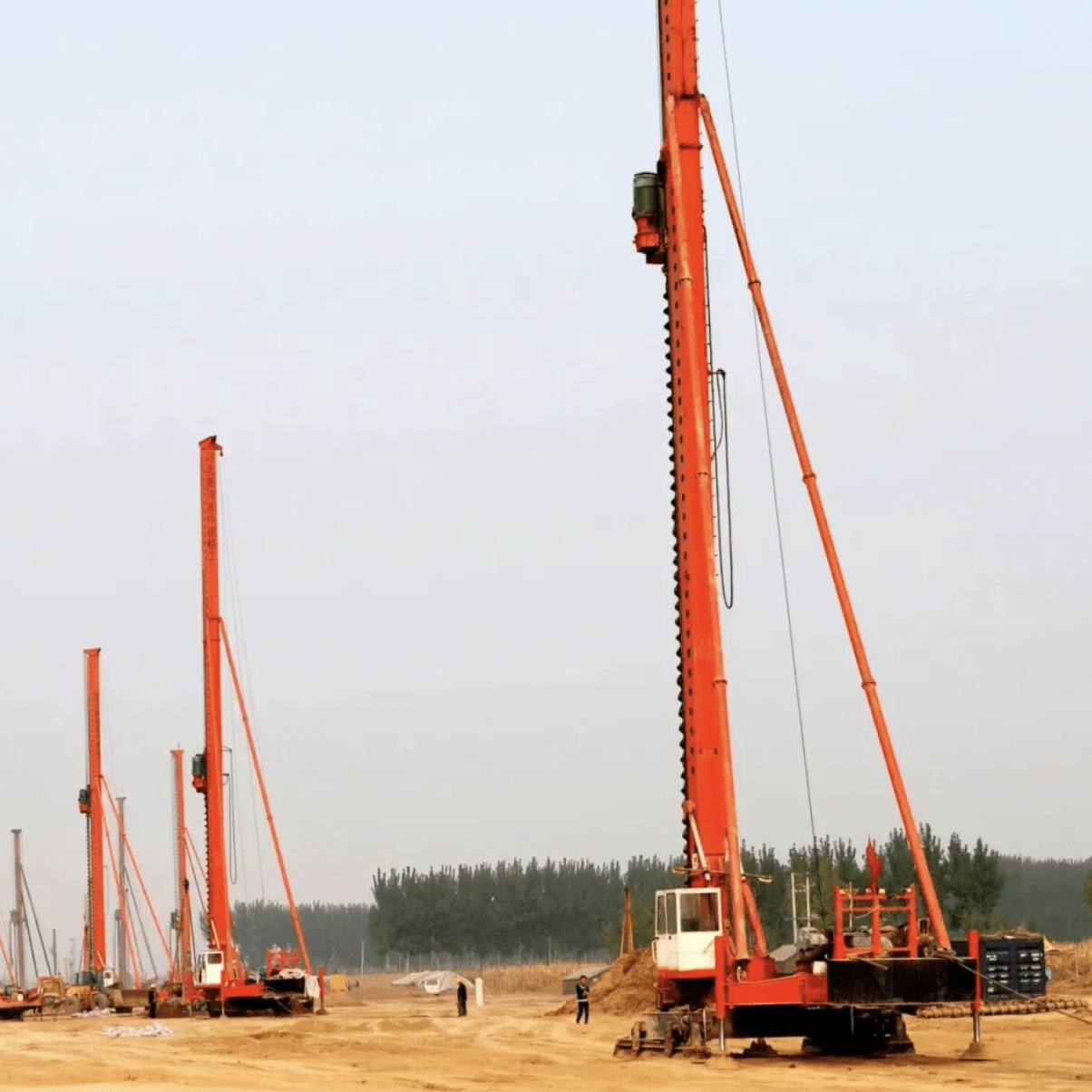

2. Piling Machine Positioning

• Ensure the machine is level to maintain verticality (<1% deviation).
• Install reference scales on the drill pipe for real-time monitoring.
• Align the drill bit with marked pile locations before starting.

3. Drilling Process

• Begin with closed valve drilling at low speed to prevent deviation.
• Gradually increase speed after initial stabilization.
• Mark achieved depth for verification before concrete pouring.

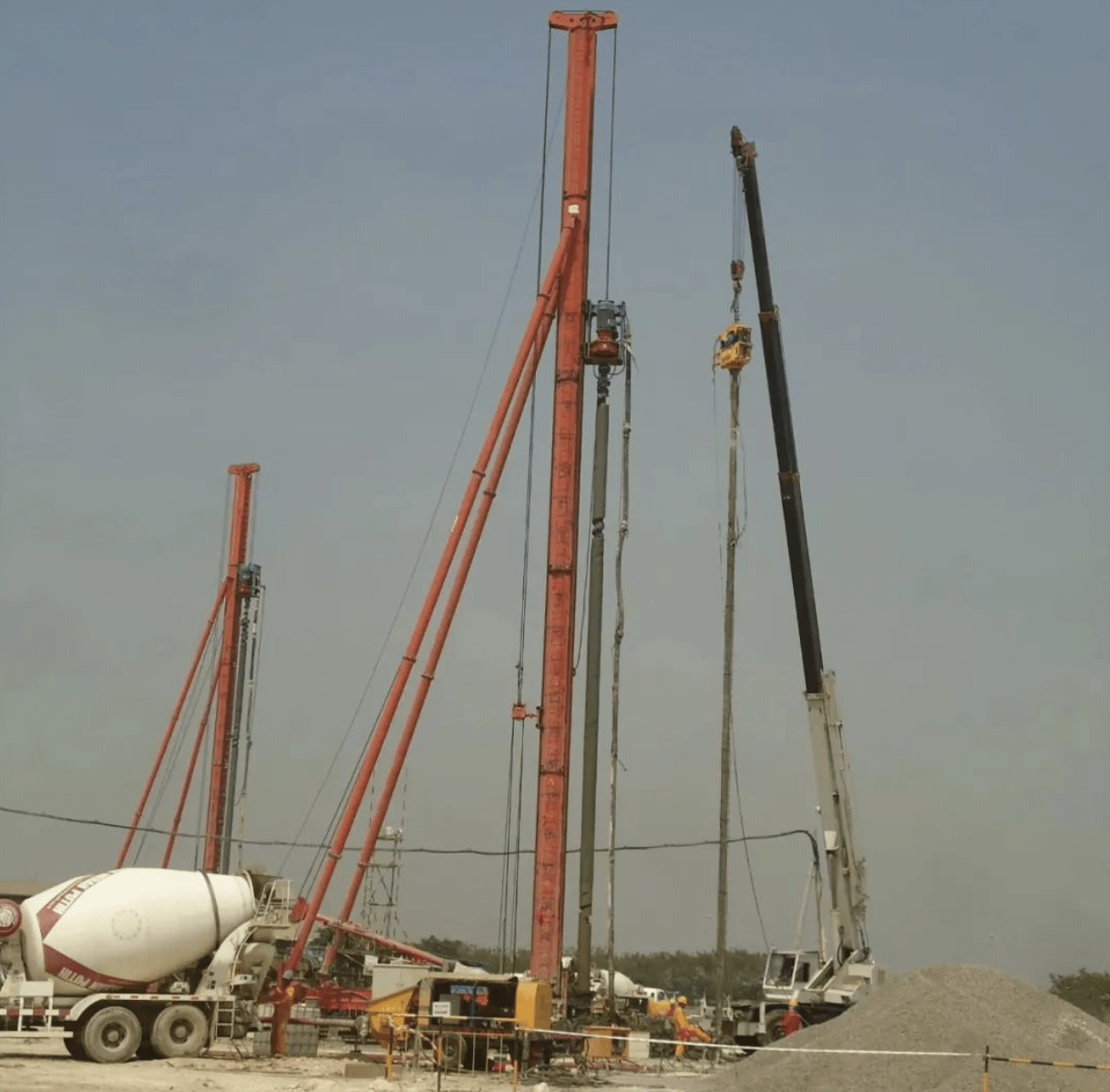

4. Concrete Pouring & Pipe Extraction

• Maintain continuous concrete supply (mix slump: 160–200mm).
• Synchronize extraction speed (1–1.5 m/min) with pumping rate.
• Cover pile heads with wet clay for curing protection.

5. Machine Relocation

• Recheck subsequent pile positions before moving equipment.
• Account for potential marker displacement due to spoil accumulation.

6. Pile Trimming

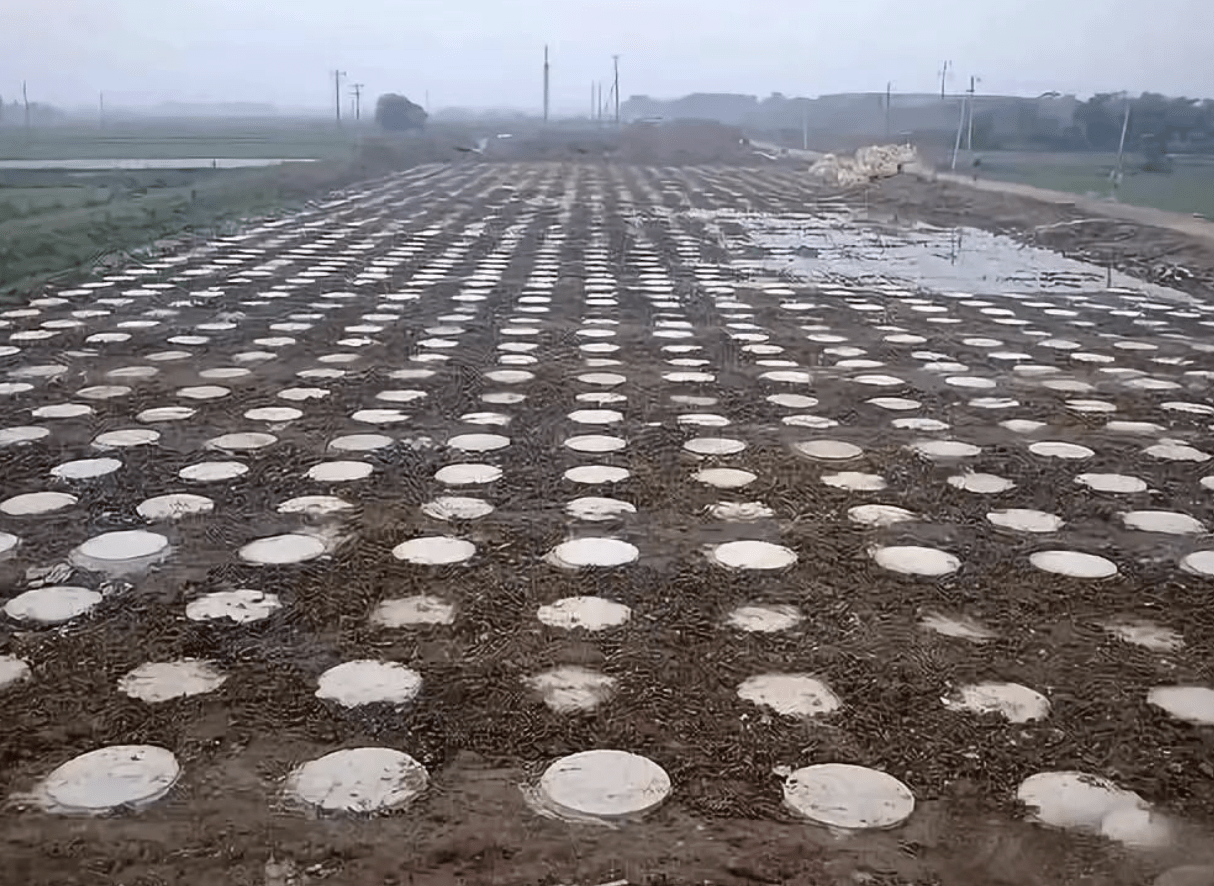

• Remove excess soil after the concrete reaches 80% strength.
• Preserve a 50cm protective soil layer above pile heads.
• Break away surplus concrete carefully to avoid damage.

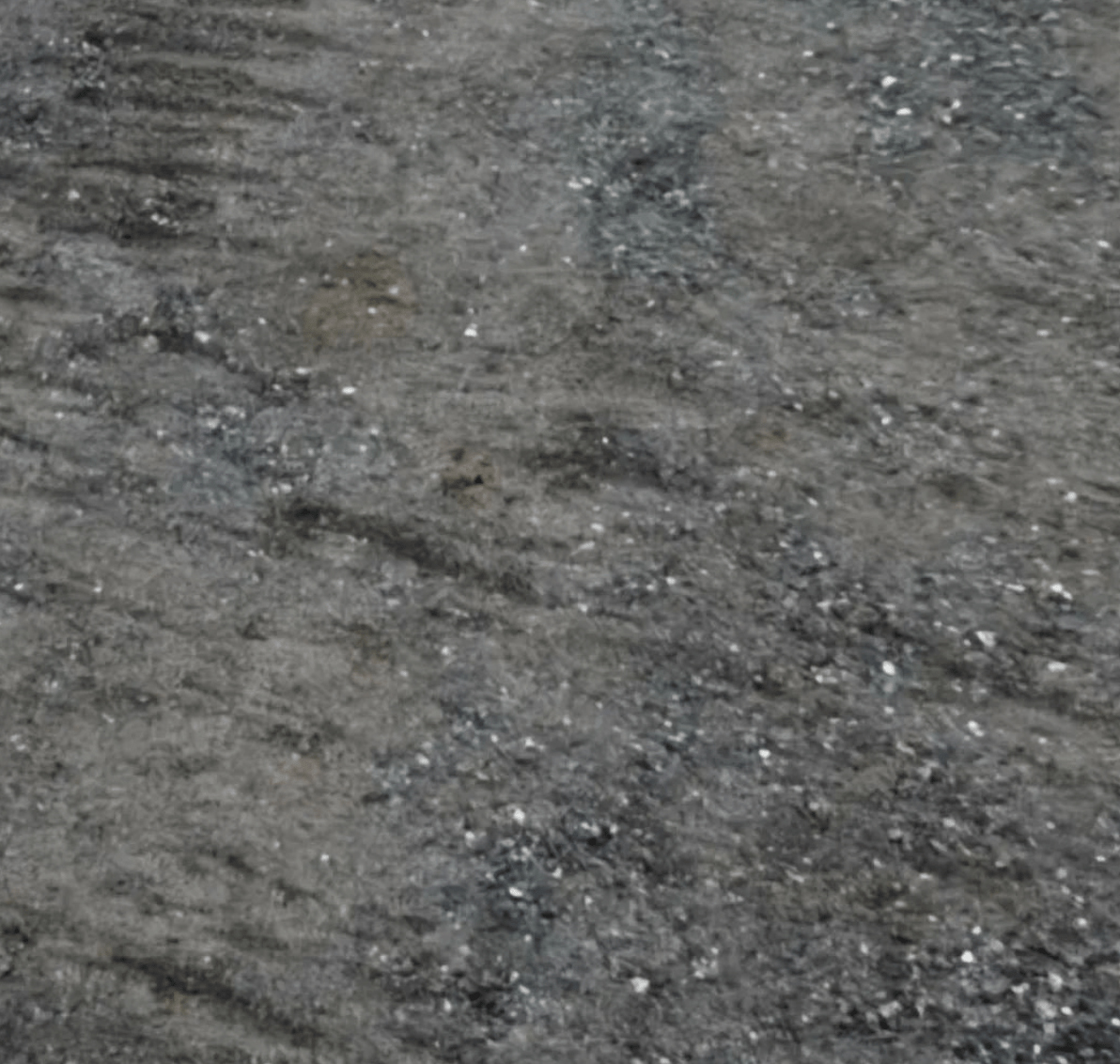

7. Gravel Cushion Installation

• Use 5–25mm crushed stone for the bedding layer.
• Compact to 0.9 relative density (dynamic compaction for dry soils).

Quality Control Measures

1. Material Management

• Test all raw materials (cement, fly ash, aggregate) before use.
• Maintain optimal mix ratio and workability to prevent pipe blockages.
• Document admixture dosages and mixing parameters.

2. Positioning Accuracy

• Conduct dual verification:
  • Pre-drilling alignment check (<15mm tolerance)
  • Post-construction position validation
• Monitor drill pipe verticality via mounted scales.

3. Process Documentation

• Maintain records for:
  • Pre-construction inspections
  • Hidden works approvals
  • Daily quality sampling (5% of piles)
• Conduct operator training on defect prevention.

4. Post-Construction Protection

• Avoid soil disturbance near cured piles.
• Implement a 7-day curing regime for pile heads.
• Perform integrity tests before load trials.

Critical Quality Tests

1. Survey Verification
   • Cross-check control points with independent surveyors.
2. Mix Quality Testing
   • Validate material gradation and compressive strength.
3. Load Capacity Tests
   • Execute static load tests on:
     • Single piles (after 28-day curing)
     • Composite foundation (post-cushion installation)

Conclusion

CFG pile technology offers a practical solution for soft ground improvement in construction projects. Key success factors include:

1. Material Quality Assurance – Prevents construction delays and ensures structural integrity.
2. Precision Alignment – Minimizes deviation risks through real-time monitoring.
3. Systematic Quality Checks – Combines process documentation with staged testing.

By implementing these measures, engineers can achieve consistent CFG pile performance while optimizing project timelines and budgets. This methodology provides a replicable framework for similar foundation works in urban development projects.
