Common Questions About Pile Tips

1.1 Why Use Pile Tips?

Pile tips protect the pile end from damage during driving and guide the pile into the soil, improving vertical alignment, reducing breakage risks, and enhancing penetration capability. They minimize soil disturbance and help the pile reach the bearing stratum efficiently. Additionally, closed-end pile tips prevent corrosive water or soil from entering the pile cavity, improving durability.

Key Benefits:

1. Increased Bearing Capacity – Closed-end pile tips allow full cross-sectional area calculation for bearing capacity, as specified in JGJ 94-2008 Technical Code for Building Pile Foundations.
2. Protection for Pile Ends – Pile tips distribute stress evenly, preventing localized stress concentration that could damage the pile end, especially in hard strata like rock or dense sand layers.
3. Prevention of Soil Plugging – In sandy layers, soil can enter the pile cavity, creating lateral pressure that may crack the pile. Pile tips mitigate this risk.

1.2 Types of Pile Tips

By Material:

• Steel
• Concrete

By Shape:

• Closed-End (Cross-Type, Cone-Type)
• Open-End

By Manufacturing Method:

• Field-Welded
• Factory-Integrated

Different designs address specific engineering challenges, with varying costs and construction requirements.

1.3 Steel Pile Tips

Common types for PHC piles include:

1.3.1 Cross-Type Steel Pile Tip

• Made from welded steel plates.
• Used in uneven or strongly weathered rock layers to aid penetration.

1.3.2 Open-End Steel Pile Tip

• Constructed with steel pipes and plates.
• Ideal for hard strata where minimal soil displacement is desired.

1.3.3 Cone-Type Steel Pile Tip

• Formed from rolled steel cones with welded base plates.
• Enhances penetration in caliche layers, sandy strata, or stiff clay.

1.3.4 Other Custom Steel Pile Tips

• Specialized designs (e.g., serrated cross-type, hexagonal cone) for unique project needs.

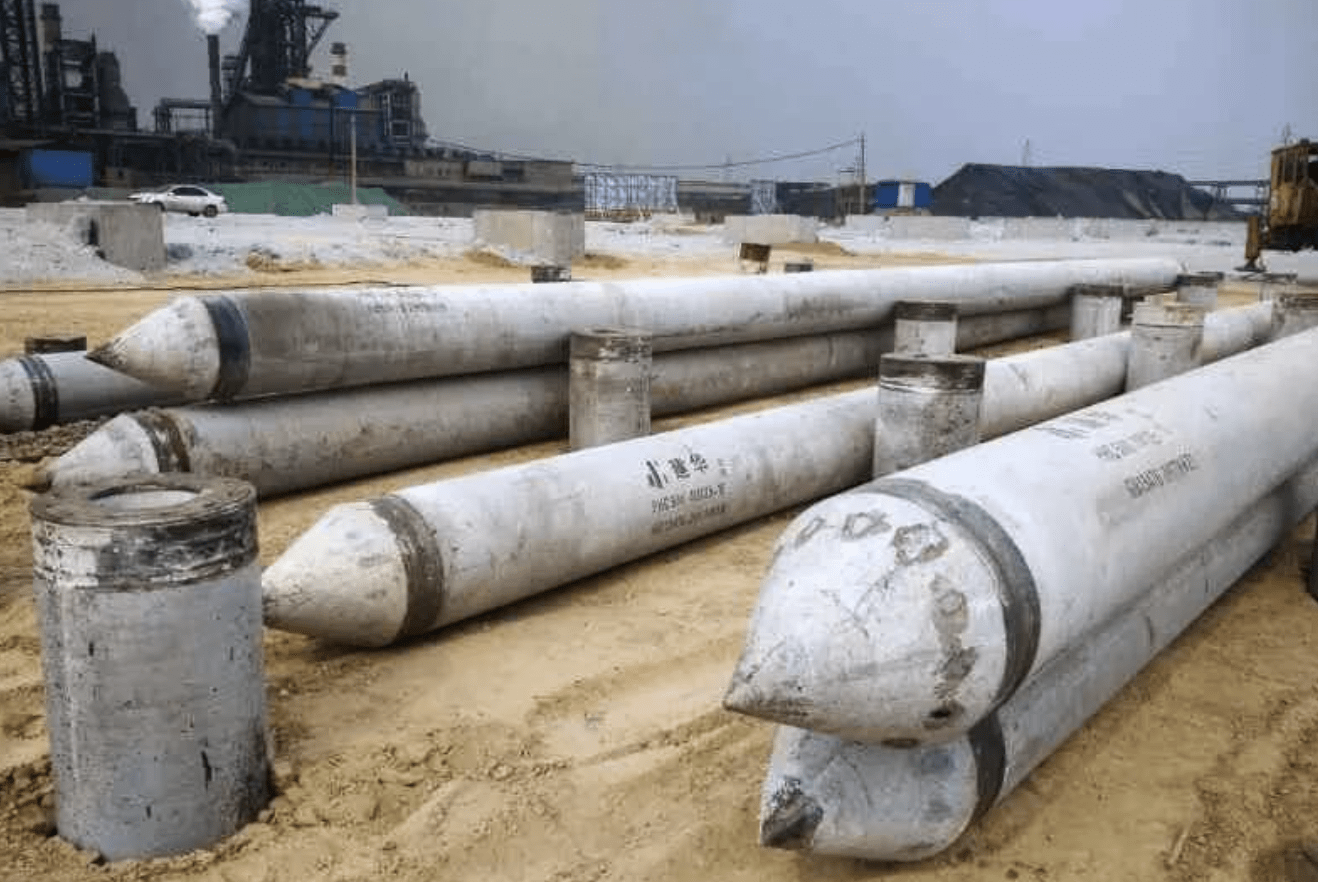

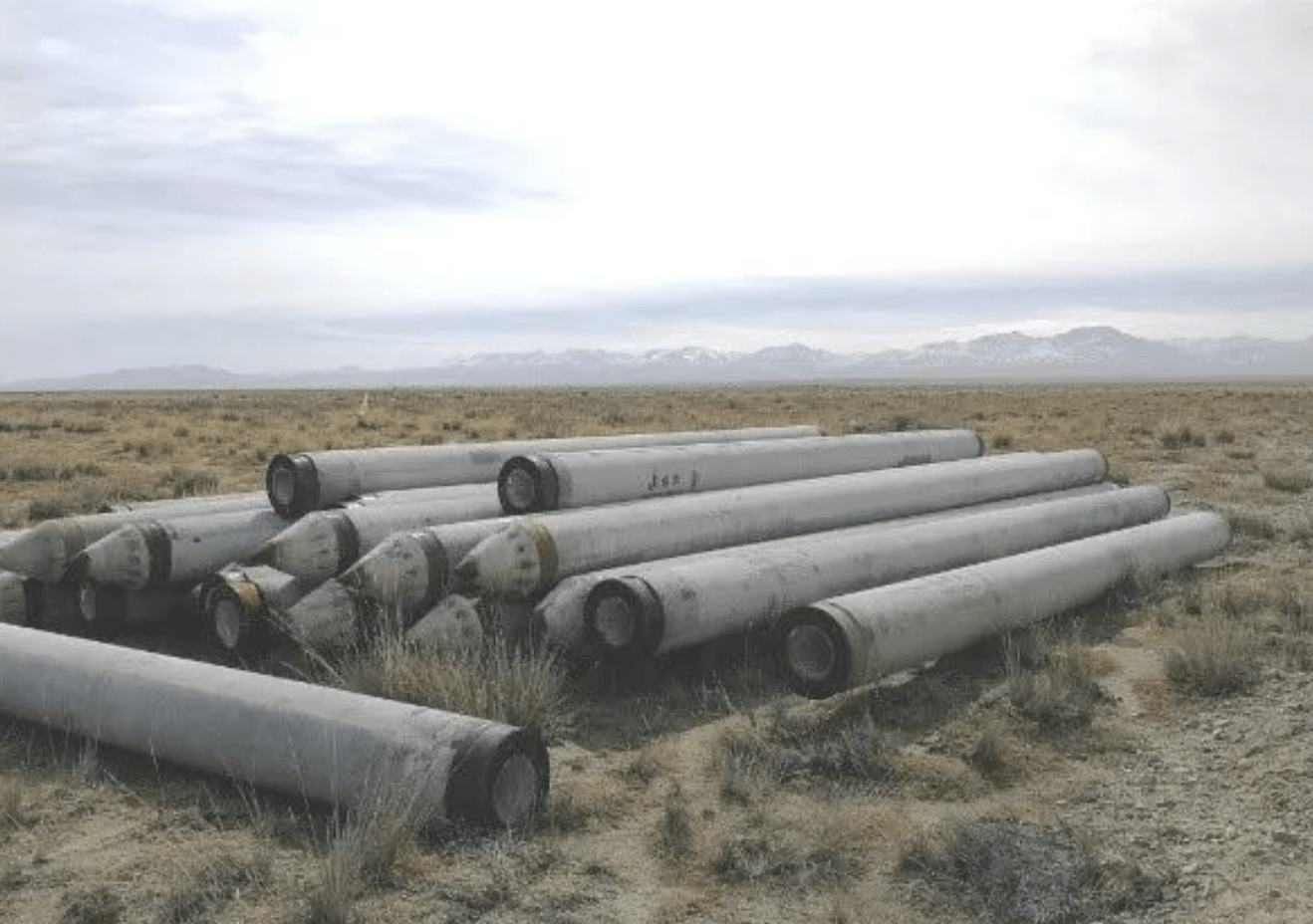

1.4 Concrete Pencil Pile (Integrated Pile Tip)

A pre-cast, cone-shaped concrete tip fused with the pile body, resembling a pencil.

Features:

• High Strength (C80 Concrete) – Under soil confinement, strength exceeds standard ratings.
• Seamless Integration – The tip is inseparable from the pile, ensuring consistent performance.
• Cost-Effective & Eco-Friendly – Eliminates welding, reducing labor, pollution, and safety risks.
• Reduced Driving Resistance – Minimizes soil disturbance by 10% compared to standard piles.
• Factory Production – Automated manufacturing ensures consistent quality.
• Versatile Shapes – Available in round or square (for hollow square piles).

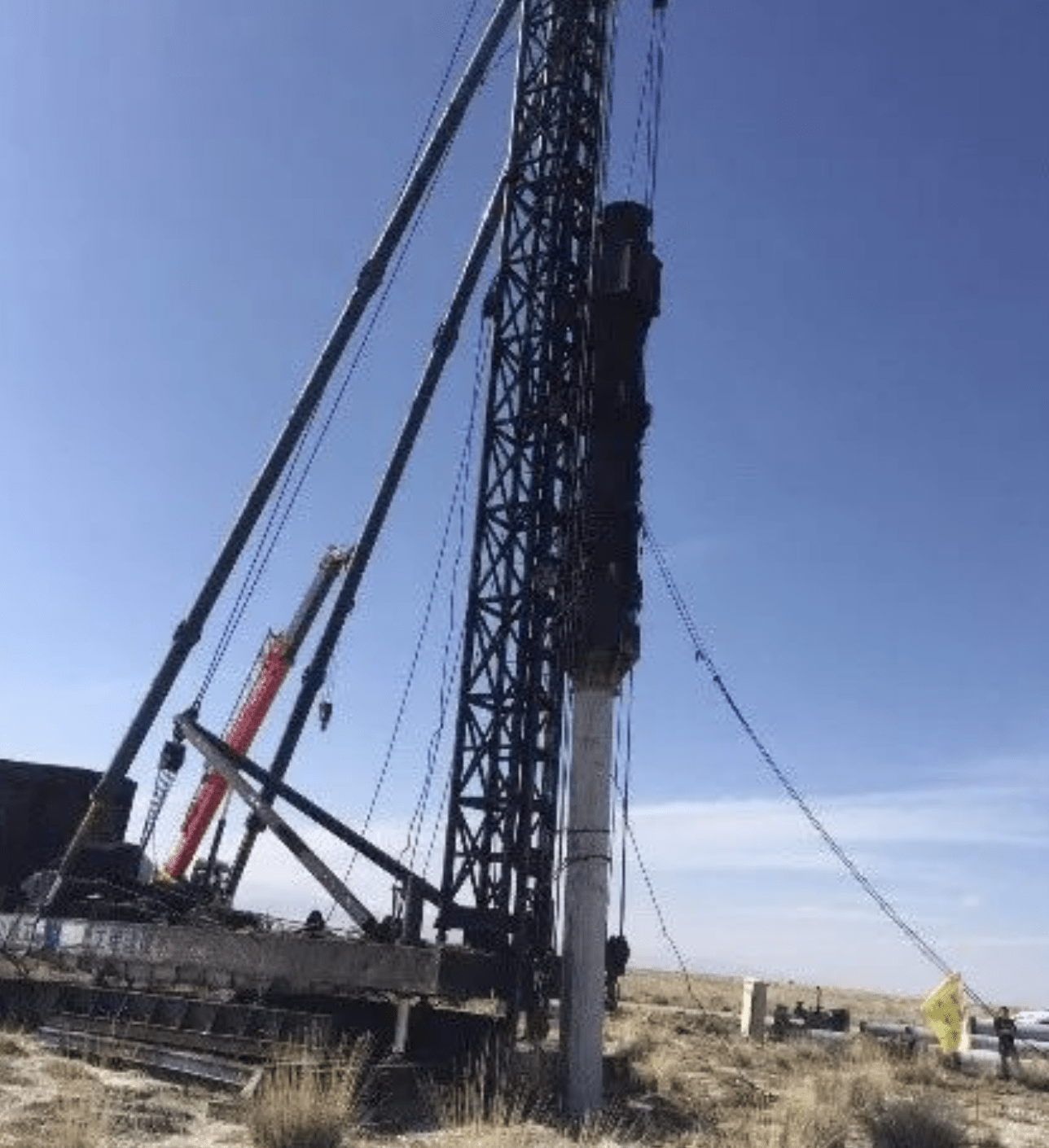

3 Applications of Pencil Piles

• Hard Strata Penetration (Caliche, sandy layers, stiff clay).
• Corrosive Environments (Moderate to high corrosion risk).
• Weatherable Rock Layers (e.g., weathered mudstone or granite prone to softening).

5 Conclusion

With rising steel costs, traditional steel pile tips are becoming obsolete. Pencil piles, widely used across China (Shaanxi, Qinghai, Shandong, etc.), offer superior technical and economic benefits for industrial, civil, and infrastructure projects. Their efficiency, durability, and cost-effectiveness make them the preferred choice in modern construction.
