Comprehensive Guide to Pile Foundation Testing: Methods and Implementation

Introduction to Pile Foundation Testing

Pile foundation testing is divided into pre-construction and post-construction testing phases. Pre-construction test pile evaluation provides design parameters by determining the ultimate bearing capacity of single piles. Post-construction engineering pile testing serves acceptance purposes, primarily evaluating single pile bearing capacity and pile integrity.

7 Essential Methods for Pile Foundation Testing

1. Single Pile Vertical Compression Static Load Test

This test applies vertical loads uniformly to building foundation piles while measuring pile settlement under different loads. The resulting Q-s curve and s-lgt auxiliary curves help determine the characteristic value of vertical compressive bearing capacity.

Key purposes:

  • Determine the ultimate vertical compressive bearing capacity

  • Verify if the vertical compressive capacity meets design requirements

  • Measure pile side and end resistance through strain/displacement tests

  • Validate dynamic testing results for vertical compressive bearing capacity

2. Single Pile Vertical Uplift Static Load Test

This method applies gradually increasing uplift forces to pile tops while measuring corresponding displacement to determine vertical uplift capacity.

Key purposes:

  • Establish the ultimate vertical uplift bearing capacity

  • Confirm if the uplift capacity satisfies the design specifications

  • Measure uplift side resistance through strain/displacement tests

3. Single Pile Horizontal Static Load Test

This approach evaluates horizontal bearing capacity and soil resistance coefficients under conditions simulating actual working environments. The multi-cycle loading-unloading method is typically used, with slow, maintained loading preferred when measuring pile stress/strain.

Key purposes:

  • Determine horizontal critical and ultimate bearing capacity

  • Derive soil resistance parameters

  • Assess if horizontal capacity/displacement meets requirements

  • Measure the bending moment through strain/displacement tests

4. Core Drilling Method

Using drilling equipment (typically with 10mm inner diameter), this method extracts core samples to evaluate pile length, concrete strength, sediment thickness at the pile bottom, and bearing stratum conditions.

Key purposes:

  • Measure the cast-in-place pile length and concrete strength

  • Determine sediment thickness at the pile bottom

  • Identify bearing stratum characteristics

  • Classify pile integrity

5. Low Strain Integrity Testing

By striking pile tops with small hammers and analyzing stress wave signals received from sensors, this method evaluates the dynamic response of the pile-soil system to assess integrity.

Key purposes:

  • Detect defects and their locations

  • Classify pile integrity

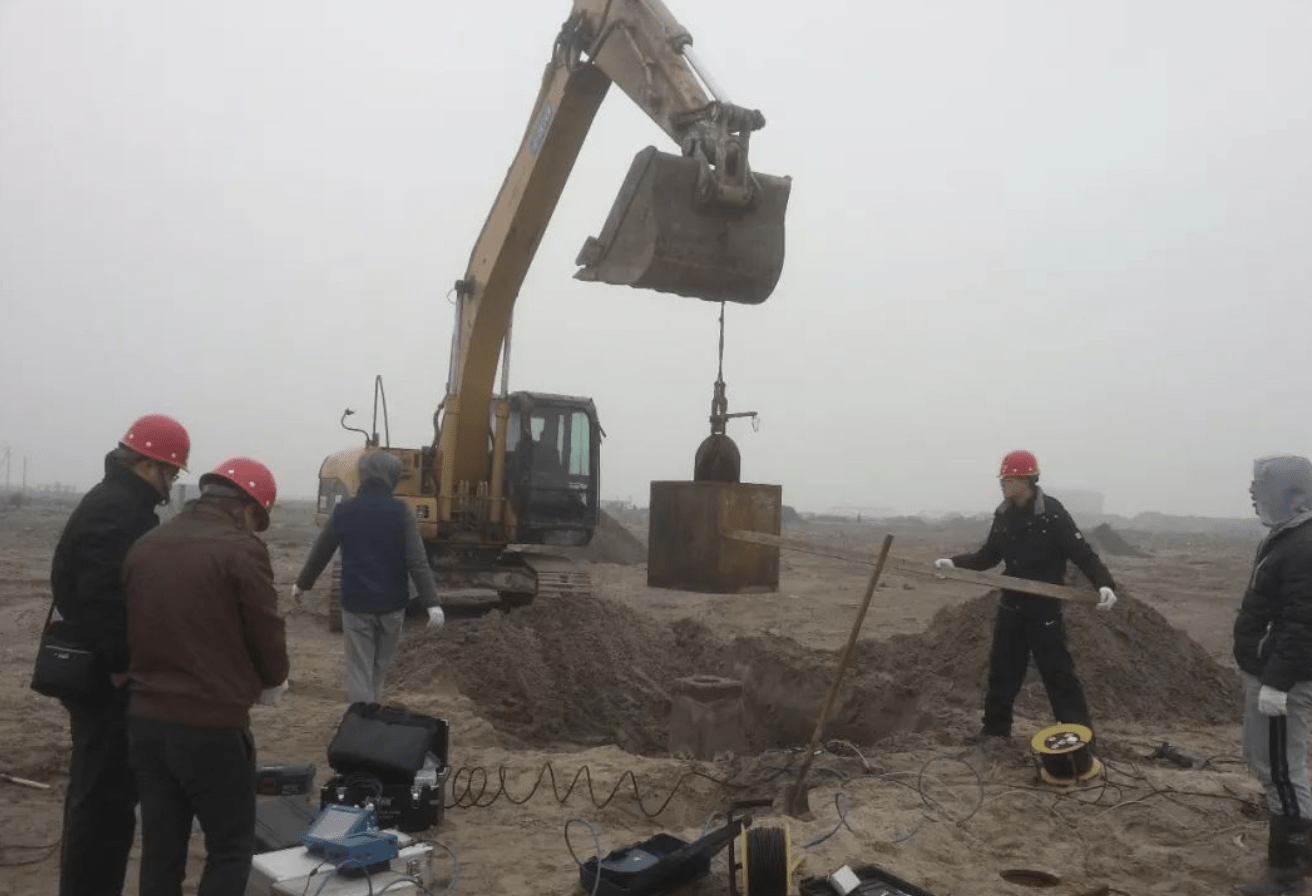

6. High Strain Dynamic Testing

Using hammers weighing over 10% of pile weight or 1% of the designed bearing capacity, this method (also called the Case or Cap-wape method) analyzes dynamic coefficients to evaluate integrity and vertical bearing capacity.

Key purposes:

  • Verify if the vertical compressive capacity meets requirements

  • Detect defects and their locations

  • Analyze side and end resistance

  • Monitor the pile driving process

  • Classify pile integrity

7. Crosshole Sonic Logging

This technique uses pre-installed sonic tubes in piles to measure ultrasonic pulse transmission parameters along the longitudinal axis, identifying defects and classifying integrity.

Key purposes:

  • Detect defects in cast-in-place piles

  • Determine defect locations

  • Classify pile integrity

Critical Implementation Guidelines for Pile Testing

Testing Timeline Requirements:

  1. For strain methods and sonic logging, Concrete strength should reach ≥70% design strength and ≥15MPa

  2. For core drilling, Concrete should cure for 28 days or reach design strength in comparable conditions

  3. Bearing capacity test waiting periods:

    • Sandy soil: ≥7 days

    • Silty soil: ≥10 days

    • Unsaturated clay: ≥15 days

    • Saturated clay: ≥25 days

    • Slurry-supported piles: Extended waiting recommended

Selection Criteria for Acceptance Testing:

  1. Piles with questionable construction quality

  2. Piles in areas with abnormal ground conditions

  3. Representative Class III piles for bearing capacity verification

  4. Piles designated as critical by designers

  5. Piles with different construction techniques

  6. Random and uniform selection according to regulations

Testing sequence: Begin with integrity testing after excavation, followed by bearing capacity evaluation.

Pile Integrity Classification:

  • Class I: Intact

  • Class II: Minor defects, no impact on structural capacity

  • Class III: Significant defects affecting structural capacity

  • Class IV: Severe defects compromising structural integrity

Characteristic Value Determination:

  • Compressive capacity: 50% of the ultimate value

  • Uplift capacity: 50% of ultimate value

  • Horizontal capacity:

    1. For crack-sensitive piles or those with <0.65% reinforcement: 75% of the critical load

    2. For reinforced concrete piles, steel piles, or those with ≥0.65% reinforcement: 75% of the load at 6mm (sensitive structures) or 10mm (non-sensitive) displacement

Core Drilling Specifications:

  • Pile diameter <1.2m: 1-2 holes

  • Diameter 1.2-1.6m: 2 holes recommended

  • Diameter >1.6m: 3 holes recommended

  • Hole placement: Symmetrically within 0.15-0.25D from center

This comprehensive guide to pile foundation testing methods and implementation provides essential knowledge for construction professionals, quality control specialists, and engineering teams working with deep foundation systems. By following these standardized testing protocols, projects can ensure structural safety, compliance with design requirements, and long-term foundation reliability.
