Introduction
Pile foundations are categorized into two main types based on load-bearing mechanisms: friction piles and end-bearing piles. Understanding these differences is critical for proper construction techniques, quality control, and ensuring structural stability.
1. Definition and Load Transfer Mechanism
End-Bearing Piles
- Load Distribution: Primarily resists vertical loads through tip resistance (end-bearing), with some contribution from shaft friction.
- Design Requirements: The pile tip must be embedded in dense layers such as gravel, dense sand, or bedrock (weathered/unaltered).
- Subtypes:
- Pure End-Bearing Piles: Nearly 100% of the load is transferred to the tip, with negligible shaft friction (e.g., piles resting on solid rock).
Friction Piles
- Load Distribution: Primarily resists loads through shaft friction, with minimal contribution from the tip.
- Design Requirements: Typically installed in cohesive soils (clay, silt) or loose-to-medium dense sands.
- Subtypes:
- Pure Friction Piles: Almost all load is carried by skin friction (e.g., long piles in soft clay).

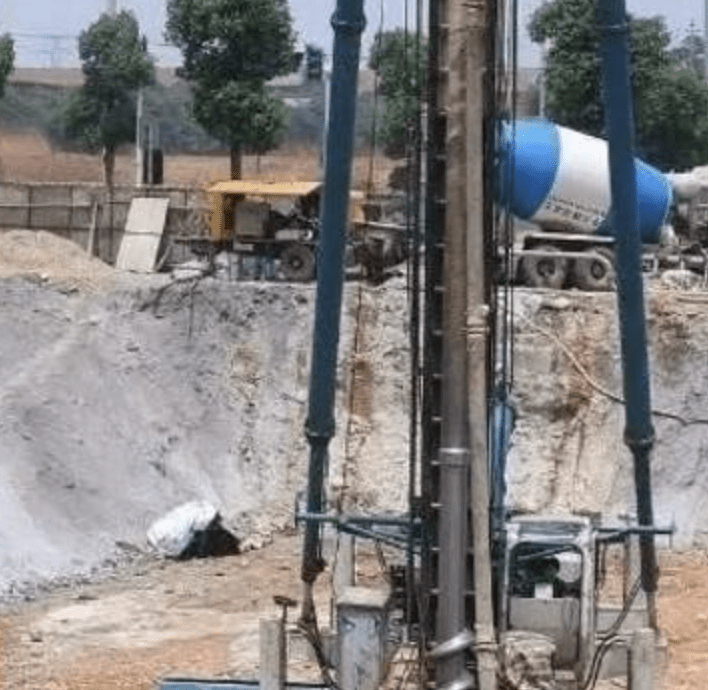

2. Construction Considerations
End-Bearing Piles
- Tip Preparation:
- Avoid disturbing the bearing stratum.
- Ensure a clean, debris-free pile tip.
- Flatten or step the tip (no sloping surfaces).
- Remove loose rock fragments in bedrock.
- Water Protection: Prevent softening of the bearing layer due to water infiltration.
Friction Piles
- Shaft Optimization:
- Maximize shaft roughness to enhance friction.
- Avoid excessive disturbance of the surrounding soil.
- Prevent water-induced weakening of soil adhesion.
3. Geological Verification After Boring
End-Bearing Piles
- Sampling Frequency:
- Every 2m (standard) or 50cm (if geological variations exist).
- Inspection Protocol:
- First pile per pier: Requires design institute, contractor, and supervisor verification.
- Checks include rock type, embedment depth, and sample matching.
- If discrepancies occur, additional boring or design adjustments are needed.
- Subsequent piles only need contractor records + supervisor approval (with photo evidence).
Friction Piles
- Sampling Frequency: Same as end-bearing piles.
- Inspection Protocol:
- Design institute checks every 8 piers (unless major geological shifts occur).
- Proceed with construction if soil conditions align with the design.
4. Post-Cleaning Requirements
| Parameter | End-Bearing Piles | Friction Piles |
|---|---|---|
| Mud Density | ≤1.1 | ≤1.1 |
| Sand Content | ≤2% | ≤2% |
| Viscosity | 17–20s | 17–20s |
| Sediment Thickness | ≤5cm | ≤20cm |
- Critical Note for End-Bearing Piles: Excess sediment (>5cm) risks settlement and must be strictly controlled.
- Friction Piles: Higher sediment tolerance (≤20cm) since load transfer relies on shaft friction.
Conclusion
Properly distinguishing between friction piles and end-bearing piles ensures correct construction methods, compliance with geological conditions, and long-term foundation stability. Contractors must adhere to sediment control, soil verification, and tip/shaft preparation guidelines for optimal performance.
