What is KAIZER Drilling Bucket ?
The Drilling Buckets are designed specifically for drilling all types of soils below groundwater.For drilling in a variety of soil conditions swivelled bottom gates can be supplied with different types of teeth.The opening of the swivelled bottom gate is facilltated by an auto matic or manual tip mechanism.
A vetillation pipe prevents the occureence of a vacuum when lifting the tools.For large drilling diameters or for the use in uncased bores,buckets with double start head are recommended.The diameter series of buckets are standard sizes.Other lengths and diameters can be supplied on request.
Which style of drilling bucket does Kaizer produce?

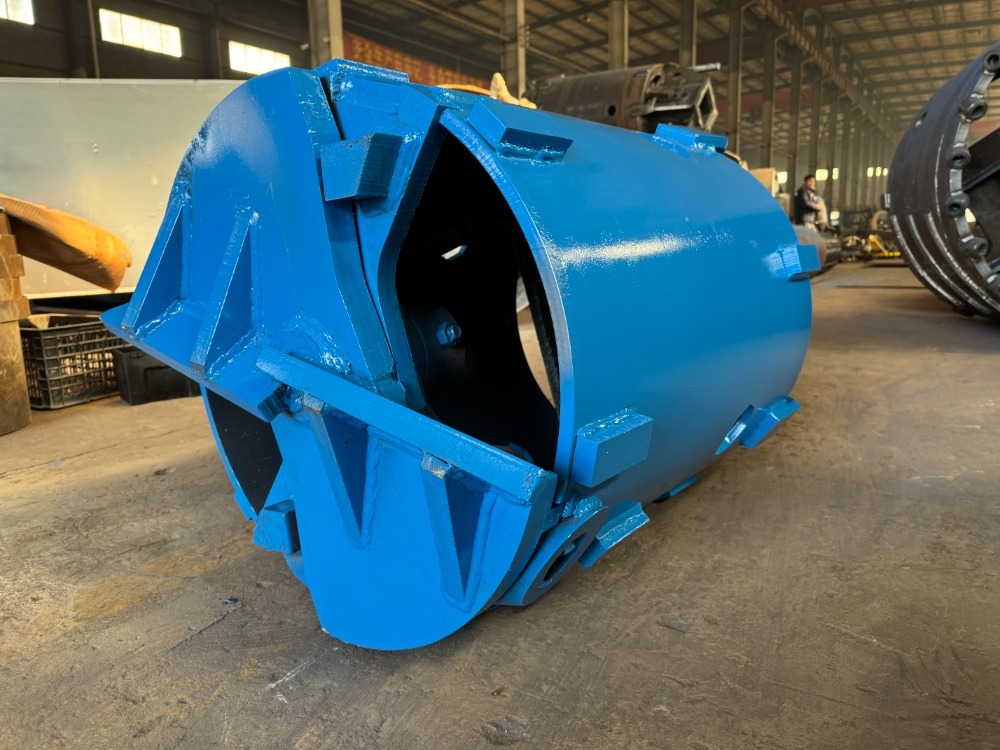

Clay Drilling Bucket
Single Cut size from 520-1500mm
Double Cut size from 1000-2500mm
Application:
*Soft to stiff silt and clay, loose to medium dense sand and gravel.
*Single cut up to coarse gravel.
*Double cut is recommended in uncased bores and for bigger diameters for secant pile wall.
Features:
*Kelly Box size:130;150;200mm,or as per customer requirement.
*Materil: Q345B
*Round shank chisel pilot bit RP4,or Fishtail Pilot and flat teeth FZ and collar plate with round shank chisels.
*Ventilation Pipe.
*Wear protection:hard facting(standard)or wear stips(optional)
Features:
*Kelly Box size:130;150;200mm,or as per customer requirement.
*Materil: Q345B
*Round shank chisel pilot bit RP4,cutting edge and collar plate with round shank chisels.
*Ventilation pipe.
*Wear protection:hard facting(standard)or wear stips(optional)

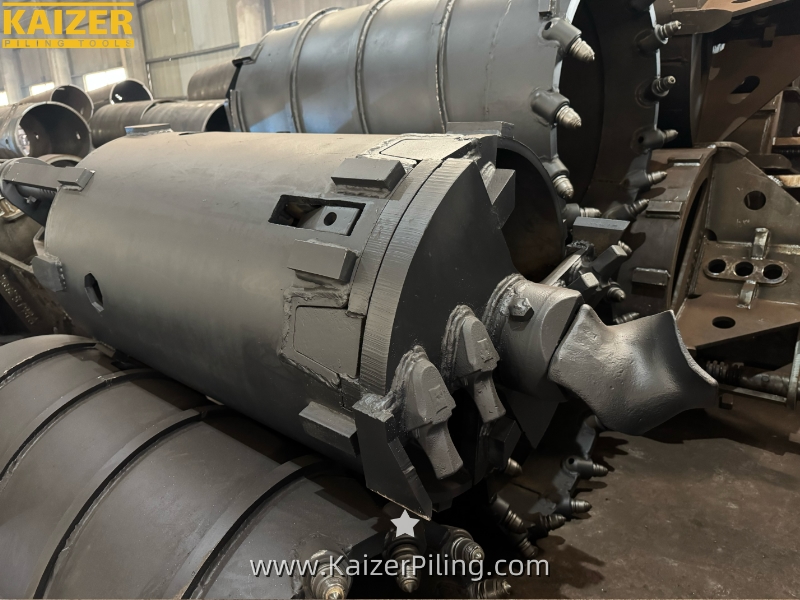

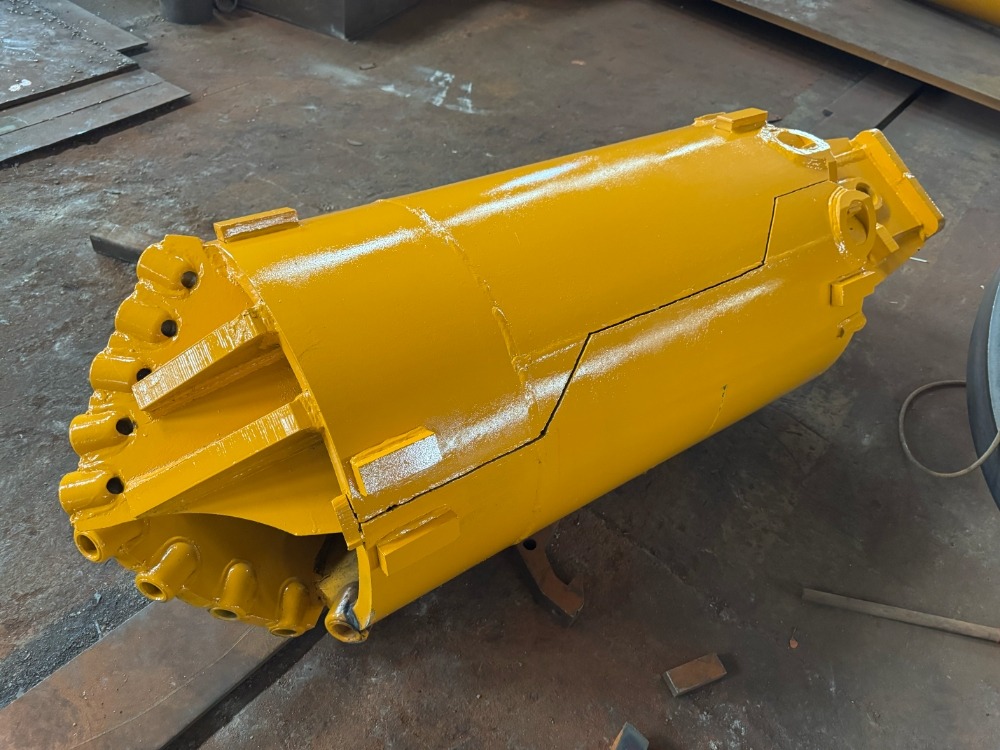

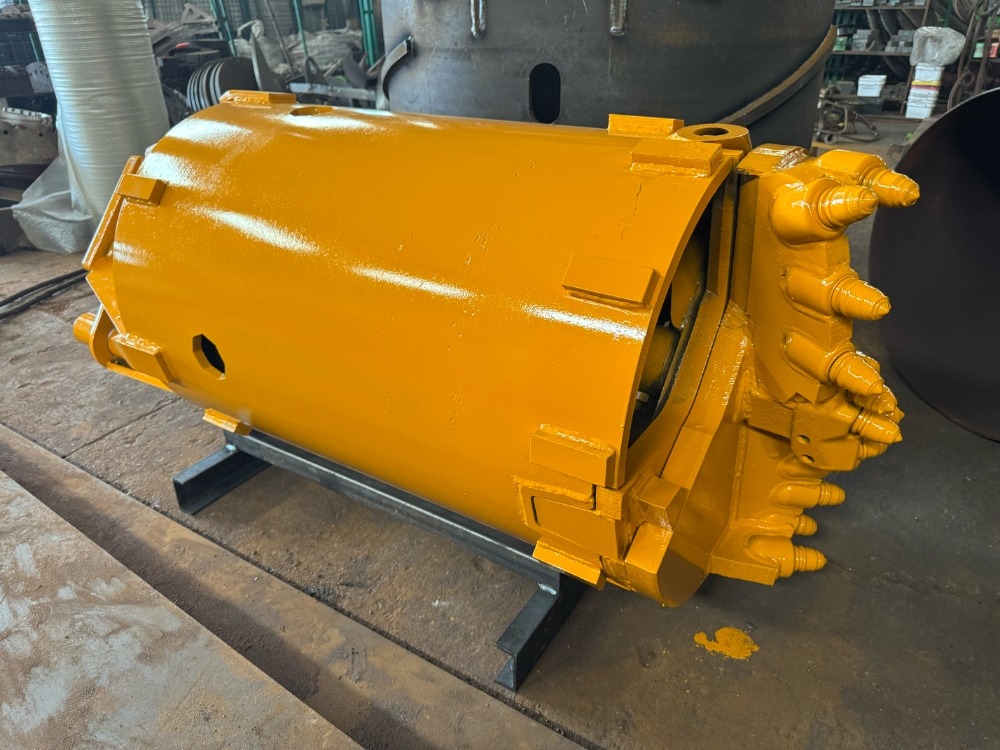

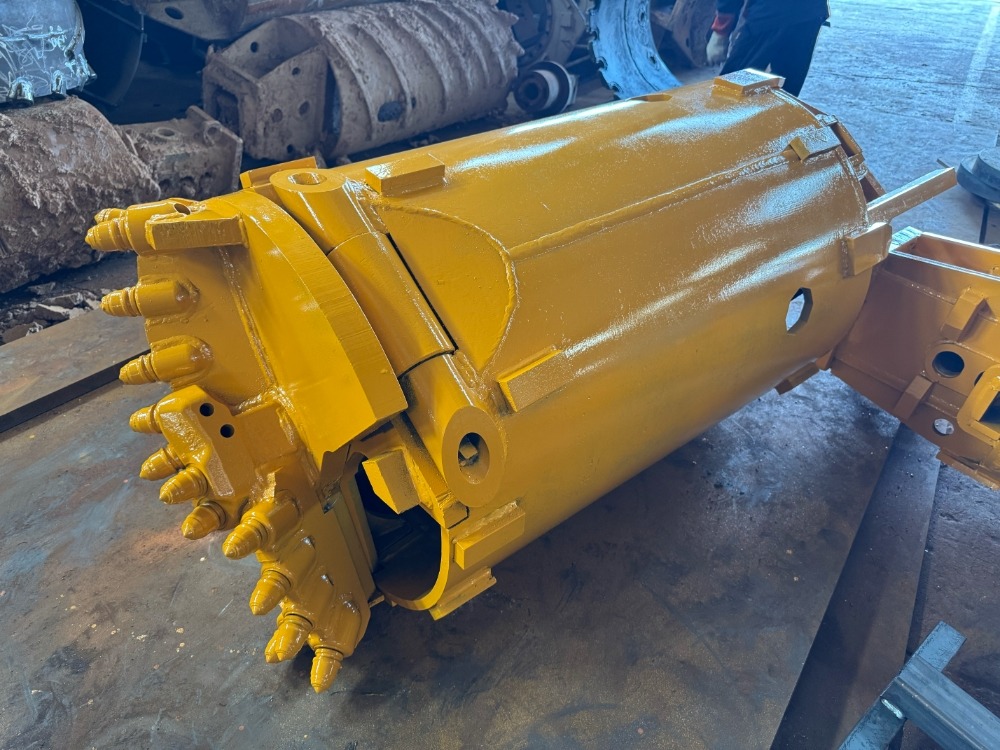

Rock Drilling Bucket
Single Cut size from 520-1500mm
Double Cut size from 1000-2500mm
Application:
*Very dense sand and gravel week rock.
*Single cut up to coarse gravel.
*Double cut is recommended for uncased bores or bigger diameters and for secant pile wall.
Cleaning Drilling Bucket
Single Cut size from 520-1500mm
Double Cut size from 1000-2500mm
Application:
*Cleaning the bottom of the bore hole.
Features:
*Kelly Box size:130;150;200mm,or as per customer requirement.
*Materil: Q345B
*Pilot Bit RP4 with round shank chisels progressive cutting dege with round shank chisels.
*Wear protection:hard facting(standard)or wear stips(optional)
Features:
*Kelly Box size:130;150;200mm,or as per customer requirement.
*Materil: Q345B
*Round shank chisels teeth or flat teeth FZ.
*Protection:hard facing(standard)or wear strips(optional)
Centrifugal Bucket
Size from 800-1000mm
Application:
*Stick Soil like clay.
*Max for up to 500Kpa mud rock or sand rock.
Which size of Drilling Bucket does Kaizer Manufacturing?
Please choose the drilling bucket from this parameter table.
| Drilling Dia mm/Item | Total Hight H(mm) | Shell Hight L(mm) | Shell Thickness T(mm) | Inner Bottom Plate Thickness T1(mm) | Outer Bottom Plate Thickness T2(mm) | Teeth Quantity (pcs) | Weight (kgs) |
| KB600 | 2100 | 1200 | 16 | 40 | 50 | 6 | 650 |
| KB700 | 2100 | 1200 | 16 | 40 | 50 | 7 | 730 |
| KB800 | 2060 | 1200 | 20 | 40 | 50 | 8 | 980 |
| KB900 | 2060 | 1200 | 20 | 40 | 50 | 9 | 1080 |
| KB1000 | 2180 | 1200 | 20 | 40 | 50 | 14 | 1260 |
| KB1100 | 2180 | 1200 | 20 | 40 | 50 | 15 | 1390 |
| KB1200 | 2180 | 1200 | 20 | 40 | 50 | 18 | 1600 |
| KB1300 | 2180 | 1200 | 20 | 40 | 50 | 19 | 1740 |
| KB1400 | 2180 | 1200 | 20 | 40 | 50 | 21 | 1970 |
| KB1500 | 2180 | 1200 | 20 | 40 | 50 | 22 | 2150 |
| KB1600 | 2180 | 1200 | 20 | 40 | 50 | 23 | 2420 |
| KB1800 | 1980 | 1000 | 20 | 40 | 50 | 27 | 2870 |
| KB2000 | 2180 | 1000 | 25 | 40 | 50 | 29 | 3570 |
| KB2200 | 1780 | 800 | 25 | 40 | 50 | 31 | 4220 |
| KB2500 | 2180 | 800 | 25 | 40 | 50 | 35 | 5040 |
What is KAIZER Drilling Auger?
Kaizer Augers have been designed for drilling in dry soil and in rock. Various teeth configurations are available for different soil conditions. The geometry of the teeth arrangement is optimized for teaching excellent cutting performance.
For Large drilling diameters or for use in uncased bores. Augers with double start heads are recommended. The diameter series of Kaizer augers are standard sizes. Other lengths and diameters can be supplied on request.
Which style of drilling bucket does Kaizer produce?

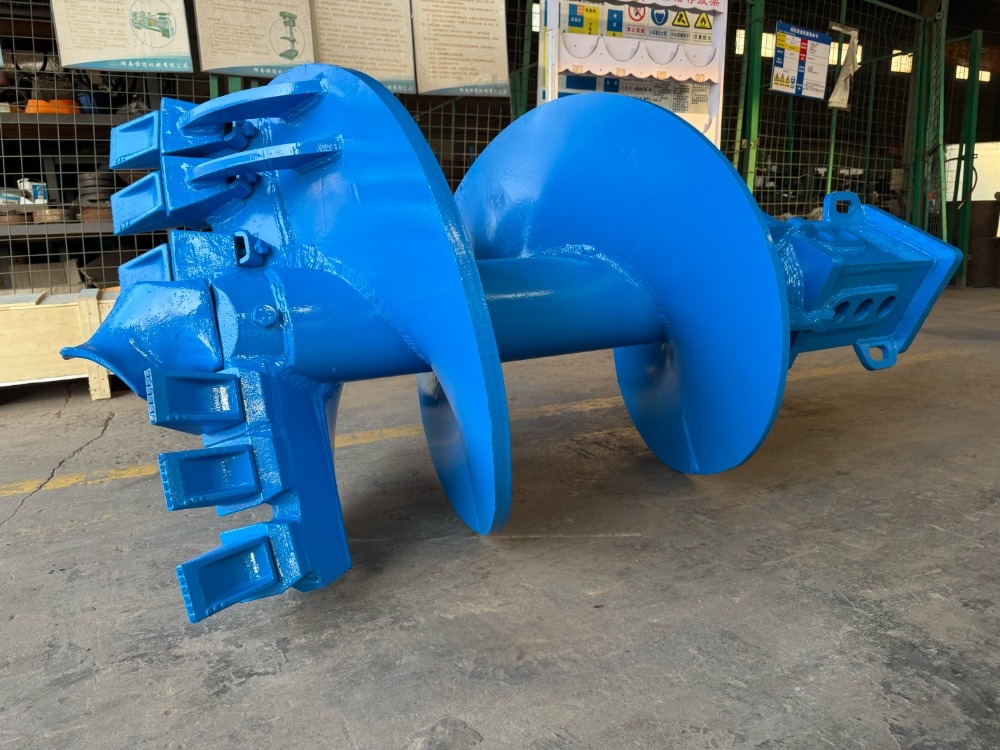

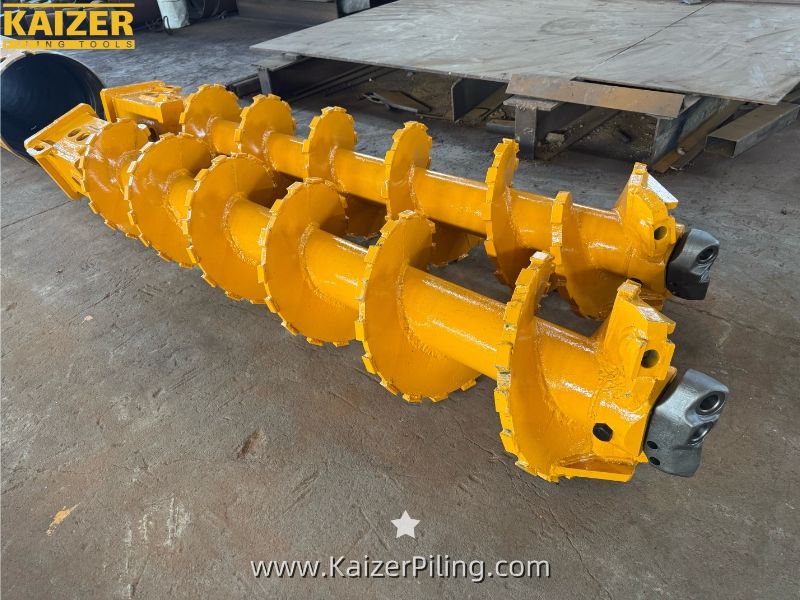

Flat Clay Auger
Single Cut size from 520-1500mm
Double Cut size from 1000-2500mm
Application:
*Soft to stiff silt and clay, loose to medium dense sand and gravel.
*Double cut is recommended for uncased bores or bigger diameters and for secant pile wall.
Features:
*Kelly Box size:130;150;200mm,or as per customer requirement.
*Material: Q345B
*Round shank chisel pilot bit RP4,Flat teeth FZ.
*Wear protection:hard facting(standard)or wear stips(optional)
Features:
*Kelly Box size:130;150;200mm,or as per customer requirement.
*Material: Q345B
*Round shank chisel pilot bit RP4,cutting edge, and collar plate with round shank chisels.
*Wear protection:hard facting(standard)or wear stips(optional)

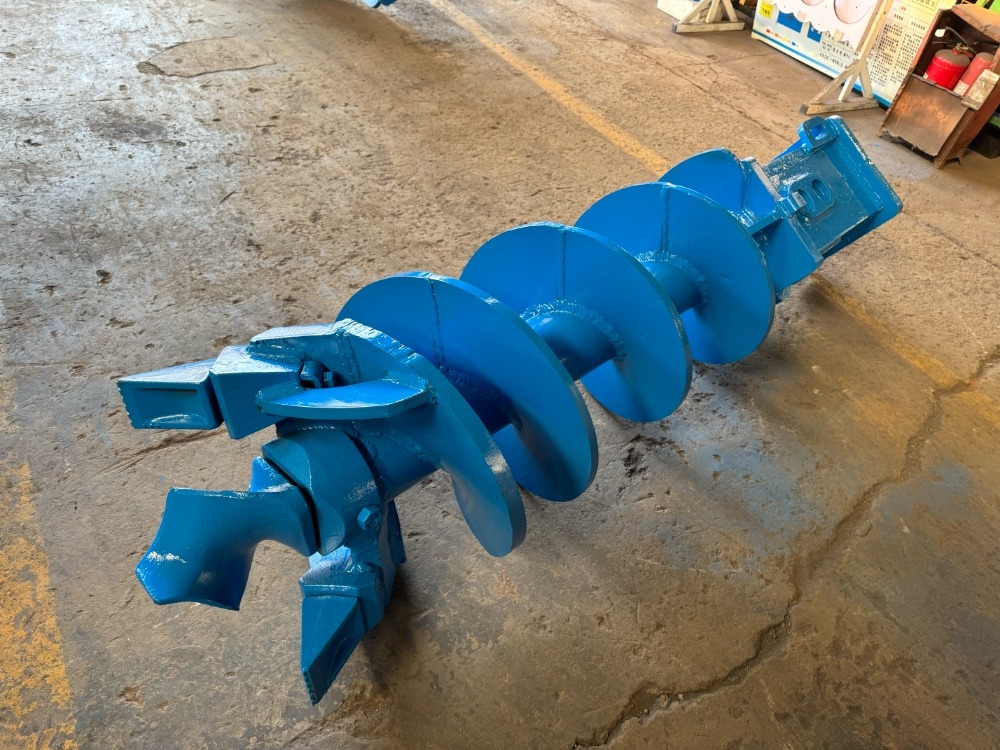

Flat Rock Auger
Single Cut size from 520-1500mm
Double Cut size from 1000-2500mm
Application:
*Very dense sand and gravel week rock.Up to 20Mpa.
*Single cut up to coarse gravel.
*Double cut is recommended for uncased bores or bigger diameters and for secant pile wall.

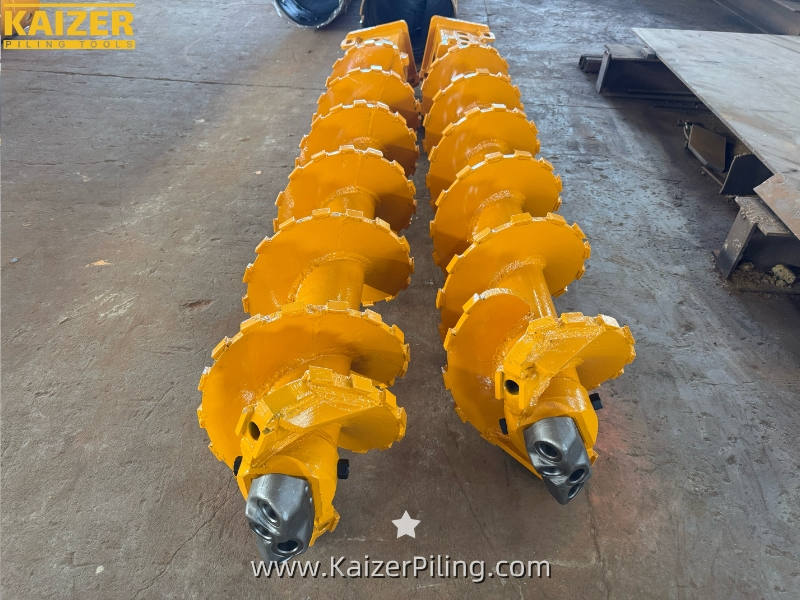

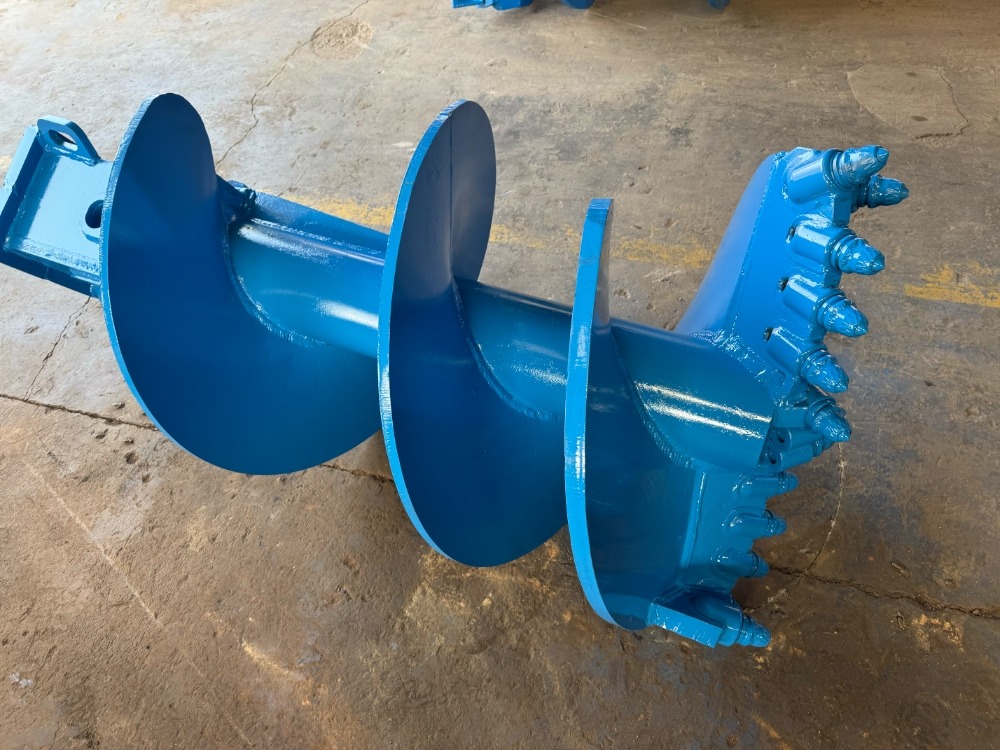

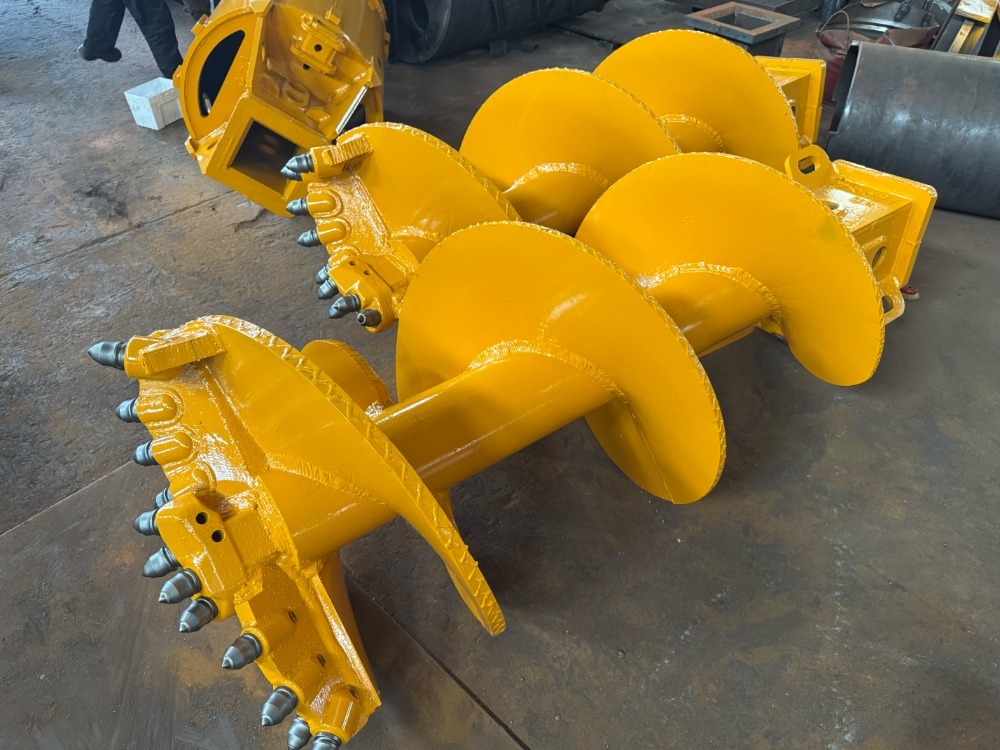

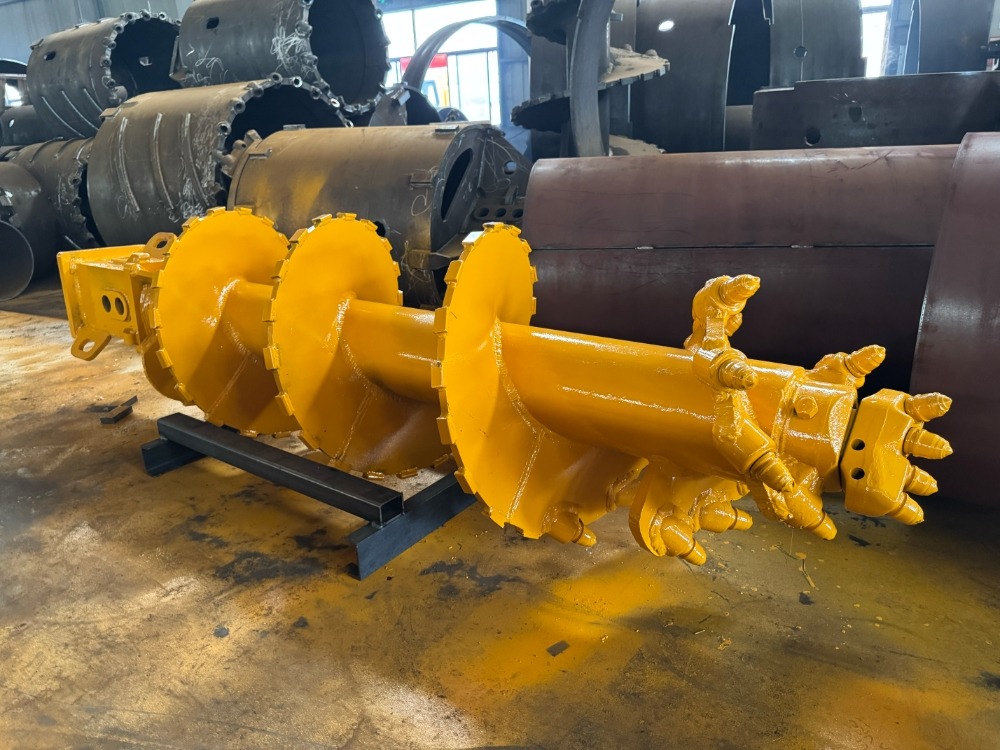

Conical Rock Auger
Single Cut size from 520-1500mm
Double Cut size from 1000-2500mm
Application:
*Moderately strong to strong rock,up to 100Mpa.
*Double cut is recommended in uncased bores or for bigger diameters.
Features:
*Kelly Box size:130;150;200mm,or as per customer requirement.
*Material: Q345B
*Pilot Bit RP4 with round shank chisels progressive cutting dege with round shank chisels.
*Wear protection:hard facting(standard)or wear stips(optional)
Which size of Drilling Auger does Kaizer Manufacturing?
please choose drilling bucket from this parameter table.
| Drilling Dia mm/Item | Spiral Height L(mm) | Pitch L2(mm) | Flight Blade Thickness T1(mm) | Flight Blade Thickness,T2(mm) | Teeth Quantity (pcs) | Weight (kgs) |
| KA600 | 1200 | 350 | 20 | 30 | 22 | 430 |
| KA700 | 1200 | 350 | 20 | 30 | 22 | 470 |
| KA800 | 1200 | 400 | 20 | 30 | 24 | 520 |
| KA900 | 1200 | 400 | 20 | 30 | 24 | 580 |
| KA1000 | 1200 | 450 | 20 | 30 | 26 | 650 |
| KA1100 | 1200 | 450 | 20 | 30 | 26 | 730 |
| KA1200 | 1200 | 500 | 20 | 30 | 28 | 780 |
| KA1300 | 1200 | 500 | 20 | 30 | 28 | 850 |
| KA1400 | 1200 | 500 | 20 | 30 | 30 | 950 |
| KA1500 | 1200 | 500 | 20 | 30 | 30 | 1020 |
| KA1600 | 1200 | 500 | 20 | 30 | 32 | 1130 |
What is KAIZER Piling Tools Core Barrel?
Kaizer Core Barrels are used for cutting an annular ring in rock or concrete(also reinforced concrete). The center core is usually broken with a chisel, rock auger, or cross-cutter. The advantage of a core barrel is the concentration of the crowd force and torque on a small ring of cutting teeth. The diameter series of Kaizer Core barrels are standard sizes. Other lengths and diameters can be supplied on request.
Which style of Core Barrel does Kaizer produce?

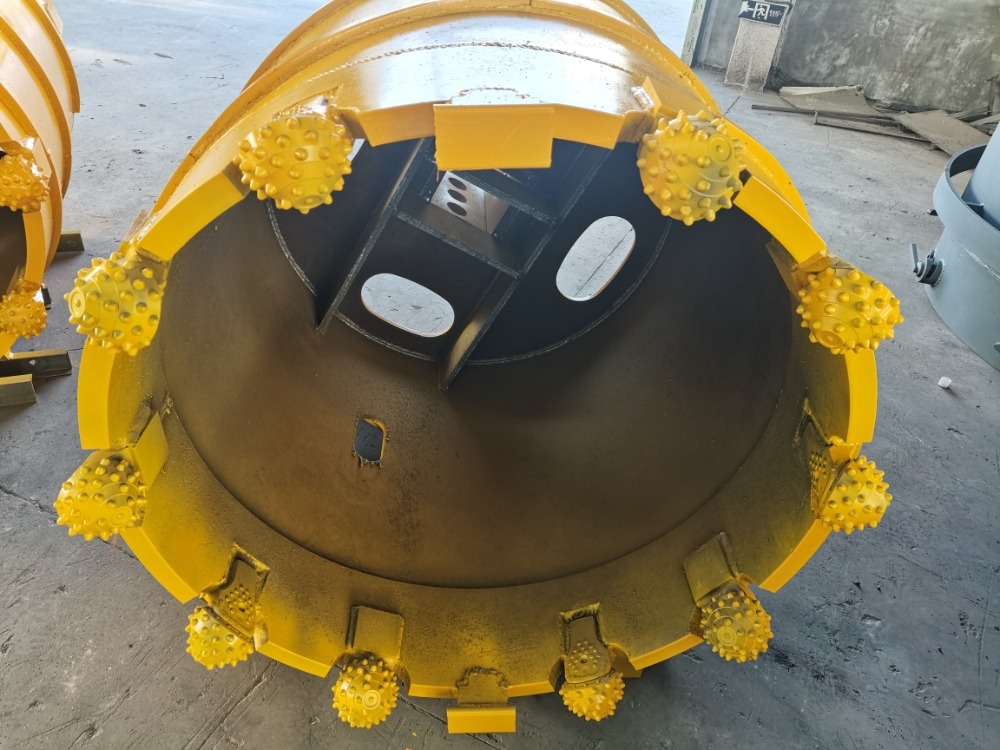

Roller Bits Core Barrel
Size：520-2000mm
Application:
*For strong rock formations(compressive strength≥100Mpa).
Features:
*Kelly Box size:130;150;200mm,or as per customer requirement.
*Roller Bits complete of bearing and carbide insert.
Features:
*Kelly Box size:130;150;200mm,or as per customer requirement.
*Cutting ring with raggered arrangement of round shank chisels.
*Chisel holders are welded to the base body.
*The round shank chisels can be easily replaced when using suitable tools.
Core Barrel with Round Shank Chisel Teeth
Size：520-2500mm
Application:
*Up to strong rock of 100Mpa suitable for cutting through fissured rock.
Cross Cutter Core Barrel
Size：520-2500mm
Application:
*Used to break rock cores that remain in the borehole after using a core barrel.
*It is also suitable for drilling had, jointed rock ＜100Mpa.
Features:
*Kelly Box size:130;150;200mm,or as per customer requirement.
*Cutting ring with round shank chisels.
*Chisel holders are welded to the base.
*Central pipe reinforcement.
Which size of Core Barrel does Kaizer Manufacturing?
Please choose drilling bucket from this parameter table.
| Drilling Diameter(mm)/Item | Total Hight H(mm) | Shell Hight L(mm) | Shell Thickness T1 (mm) | Shell Thickness T2 (mm) | Teeth Quantity (pcs) | Weight (kgs) |
| KC600 | 1780 | 1200 | 16 | 40 | 6 | 480 |
| KC700 | 1780 | 1200 | 16 | 40 | 6 | 560 |
| KC800 | 1780 | 1200 | 20 | 40 | 9 | 730 |
| KC900 | 1780 | 1200 | 20 | 40 | 9 | 820 |
| KC1000 | 1780 | 1200 | 20 | 40 | 12 | 930 |
| KC1100 | 1780 | 1200 | 20 | 40 | 12 | 1020 |
| KC1200 | 1780 | 1200 | 20 | 40 | 15 | 1150 |
| KC1300 | 1780 | 1200 | 20 | 40 | 15 | 1260 |
| KC1400 | 1780 | 1200 | 20 | 40 | 18 | 1390 |
| KC1500 | 1780 | 1200 | 20 | 40 | 18 | 1500 |
| KC1600 | 1780 | 1200 | 20 | 40 | 21 | 1600 |
| KC1800 | 1580 | 1000 | 20 | 40 | 24 | 1680 |
| KC2000 | 1580 | 1000 | 25 | 40 | 27 | 1890 |
| KC2200 | 1380 | 800 | 25 | 40 | 30 | 2170 |
| KC2500 | 1380 | 800 | 25 | 40 | 33 | 2550 |
| KC2800 | 1380 | 800 | 25 | 40 | 39 | 2950 |
| KC3000 | 1380 | 800 | 25 | 40 | 42 | 3220 |
How Does Kaizer Ship Drilling Tools to The World?
All drilling tools are transported in containers, and sea transportation is arranged according to the quantity you purchase.
How to Purchase Drilling Tools from Kaizer Piling Company?
1, Please choose the type of drilling tools according to your geological requirements
2, Tell us the diameter of drilling tools, and Kelly box size for drilling tools.
3, Is there any requirement for the height of drilling tools, if not, we will provide the standard height according to our standard.
4, Whether you need Collar Plate, center pilot tooth and wear block, or other special requirements, if not, we will produce according to our standard. If yes, please let us know your requirements.
5, If you don’t know how to choose drilling tools, please provide us with a geological data or strata report, depth and diameter of drilling, brand, and model of equipment, we will recommend for you.

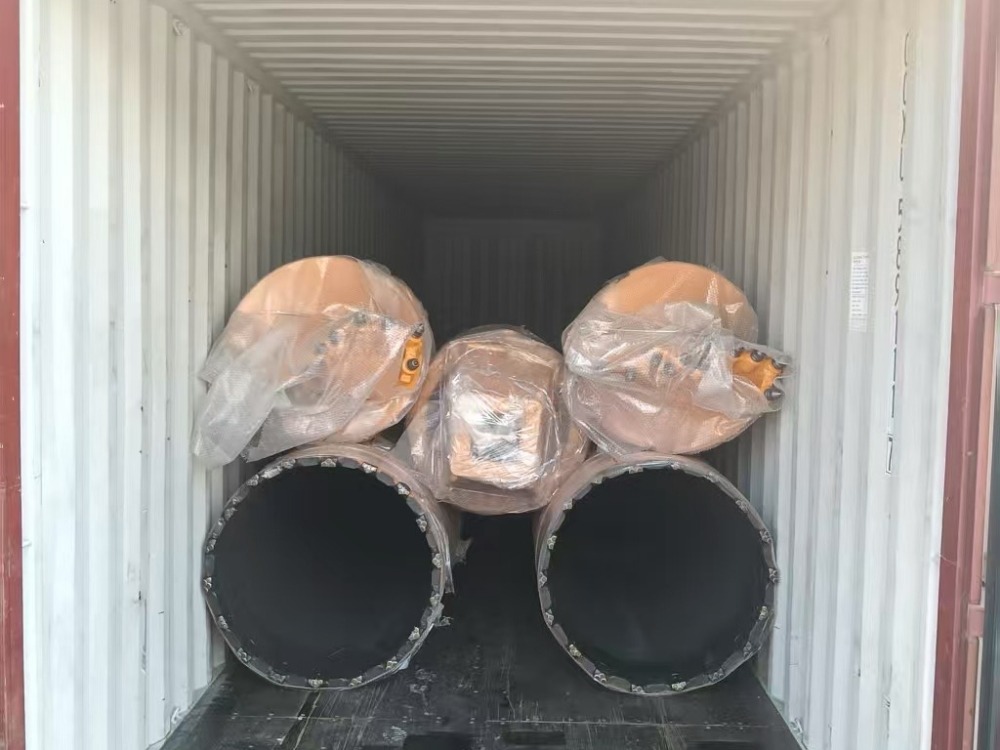

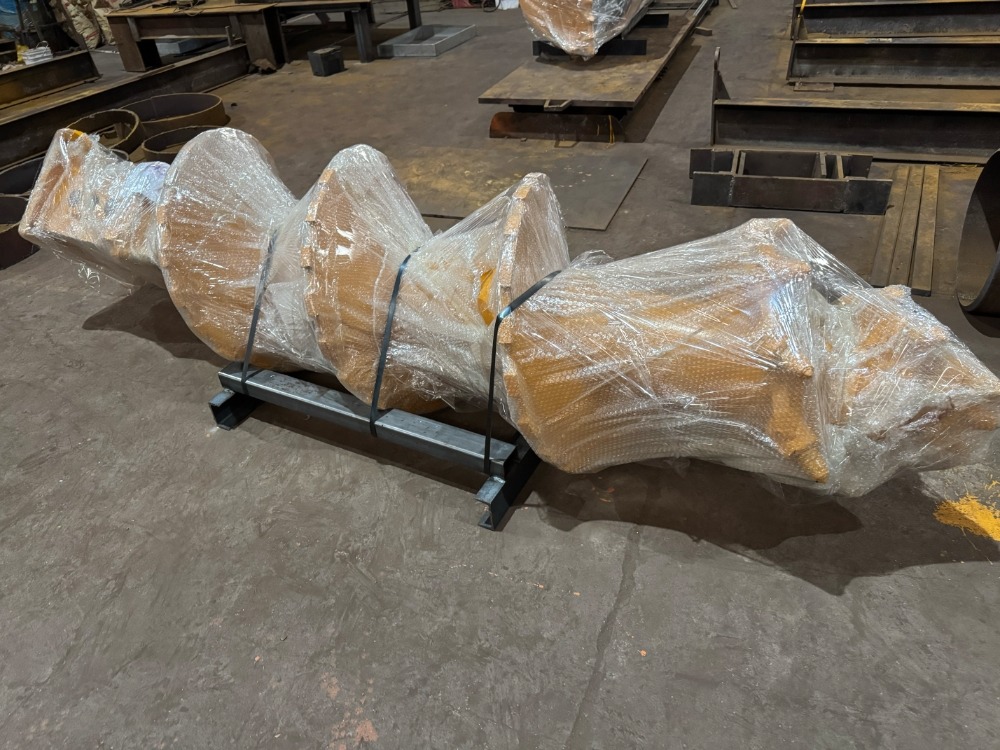

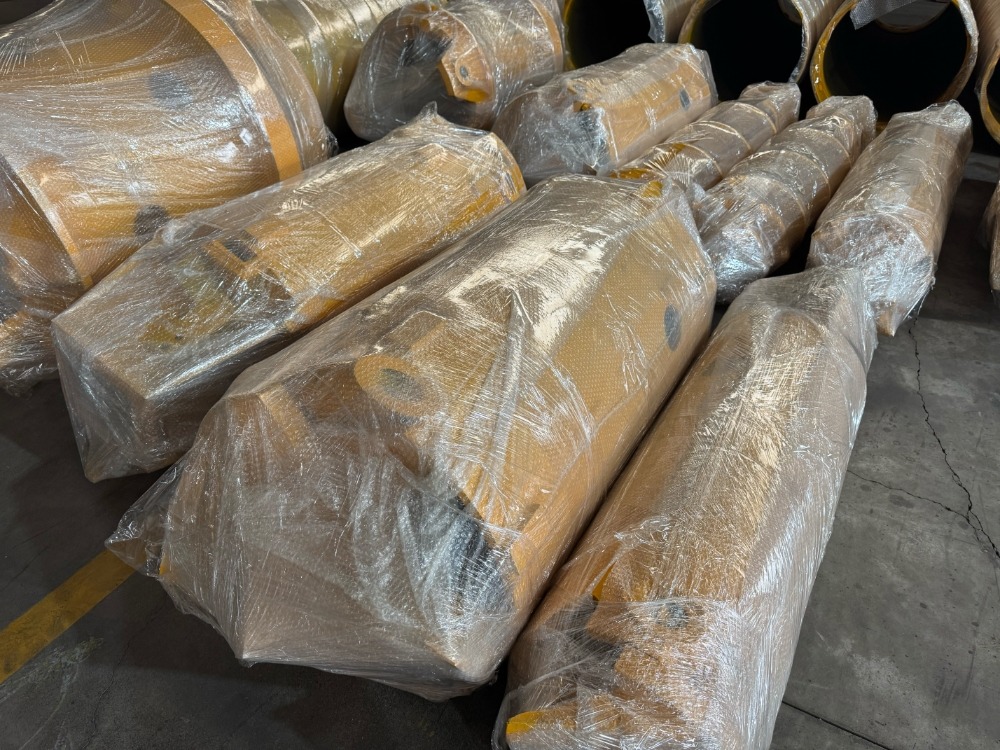

Kaiser Piling Tools Packaging and Shipping

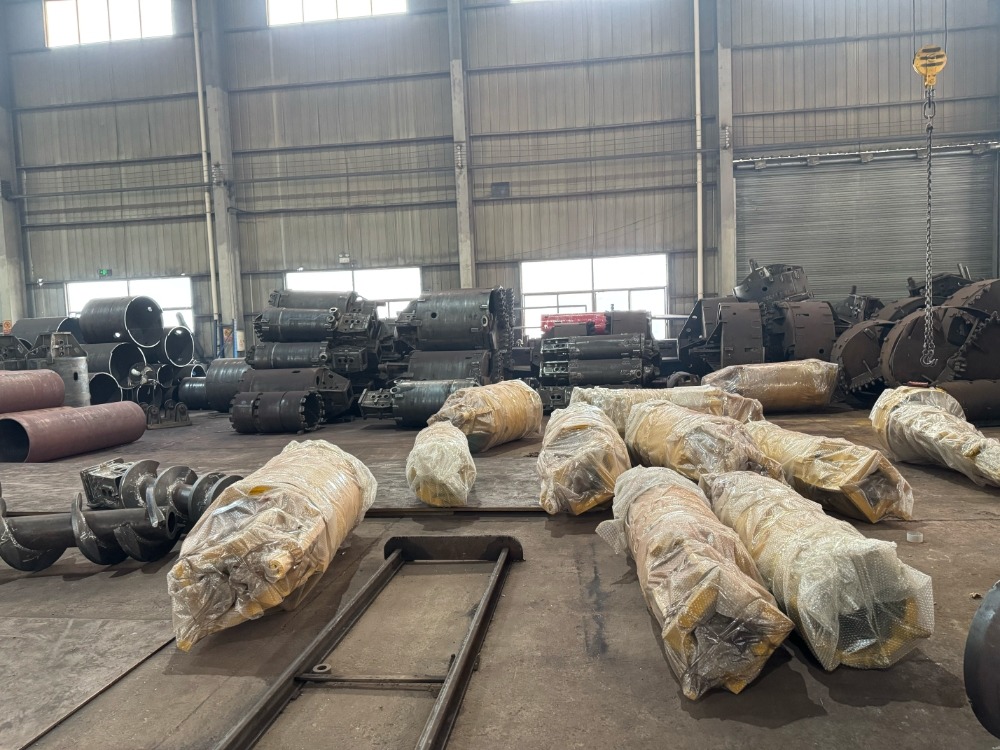

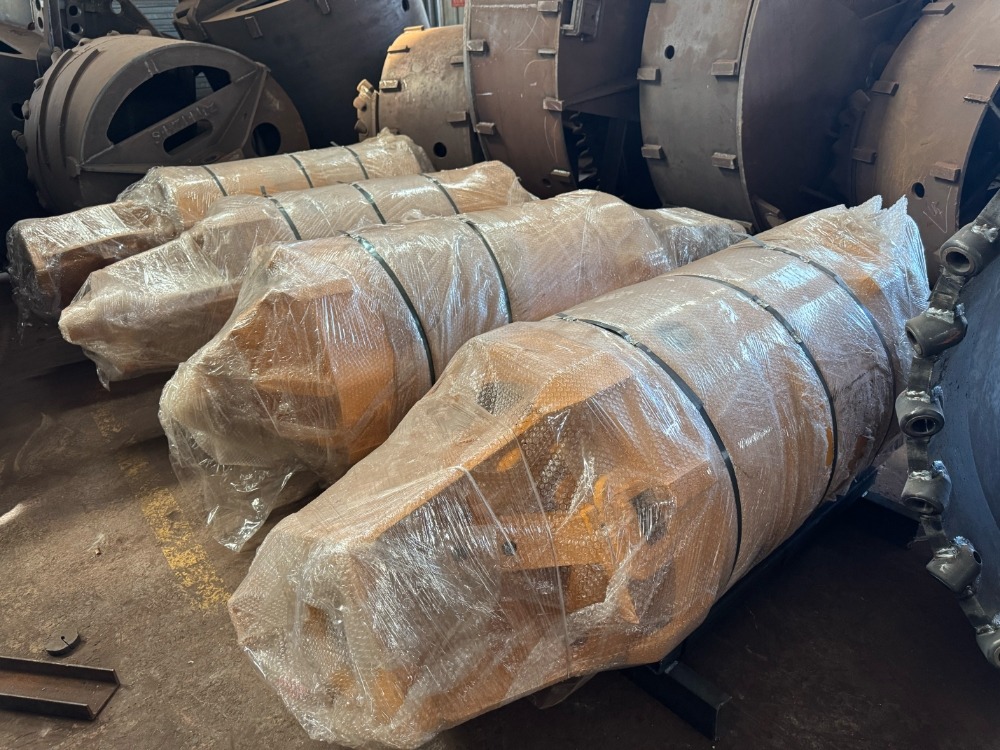

All drilling tools will be wrapped with plastic bubble film, dustproof and waterproof, and then an iron frame will be made to fix the drilling tools, the drilling tools, and the base will be bound with an iron belt. Below are the pictures and packaging of our shipment for your reference.
