The Comprehensive Guide to Cushion Layer Method in Ground Improvement

Introduction to the Cushion Layer Method

The cushion layer method involves excavating weak soil within a certain depth below the foundation base and replacing it with compacted layers of high-strength materials such as sand, gravel, plain soil, lime soil, or other stable, non-corrosive materials. This technique enhances the bearing capacity and stability of the foundation.

Classification of the Cushion Layer Method

1. By Material Type

  • Sand cushion layer

  • Gravel cushion layer

  • Plain soil cushion layer

  • Lime soil cushion layer

  • Fly ash cushion layer

  • Reinforced soil cushion layer

2. By Function

  • Replacement cushion layer – Substitutes weak soil with stronger materials.

  • Drainage cushion layer – Facilitates water drainage and consolidation.

  • Reinforced soil cushion layer – Enhances stability with geosynthetics or other reinforcements.

Applicability of the Cushion Layer Method

This method is suitable for shallow treatment (typically ≤3m, but not <0.5m for cost-effectiveness) of weak soils, including:

  • Soft clay & silt

  • Collapsible loess

  • Plain fill & miscellaneous fill

  • Areas with hidden trenches or ponds

It is ideal for foundations under moderate loads where deep stabilization is unnecessary.

Key Functions of Cushion Layers

1. Replacement Cushion Layer

  • Improves Bearing Capacity: Replacing weak soil with compacted sand/gravel increases load-bearing strength.

  • Reduces Settlement: Dense cushion materials minimize shallow-layer deformation and stress on deeper strata.

  • Accelerates Drainage & Consolidation: Permeable materials (e.g., sand/gravel) dissipate pore water pressure, speeding up soil stabilization.

  • Prevents Frost Heave: Coarse materials resist capillary action, reducing ice-induced expansion in cold climates.

2. Drainage Cushion Layer

  • Acts as a horizontal drainage channel for soft soils.

  • Enhances shallow soil shear strength and deep-layer consolidation (when combined with sand drains).

  • Restrains lateral deformation of weak subsoil.

3. Reinforced Soil Cushion Layer

  • Distributes stress evenly.

  • Increases stiffness and reduces differential settlement.

  • Controls lateral soil movement.

Design Considerations for Cushion Layers

1. Material Selection

Common materials include sand, gravel, plain soil, lime soil, fly ash, slag, and reinforced soil. Choice depends on local availability and project requirements.

2. Thickness & Width Determination

  • Replacement layers: Typically 0.5–3.0m (thicker layers are less economical).

  • Non-collapsible loess: Ensure overburden pressure < collapse threshold.

  • Collapsible loess: Thicker layers or residual settlement ≤20cm.

3. Settlement Calculation

  • Coarse materials (gravel/sand): Negligible post-construction settlement.

  • Fine materials (fly ash/lime soil): Account for layer compression.

  • Use the layer-wise summation method for calculations, with elastic moduli (Eₛ) as follows:

    • Sand: 20–30 MPa

    • Fly ash: 8–20 MPa

    • Gravel: 30–50 MPa

Construction Techniques

1. Mechanical Compaction

  • Equipment: Rollers, bulldozers, or vibratory compactors.

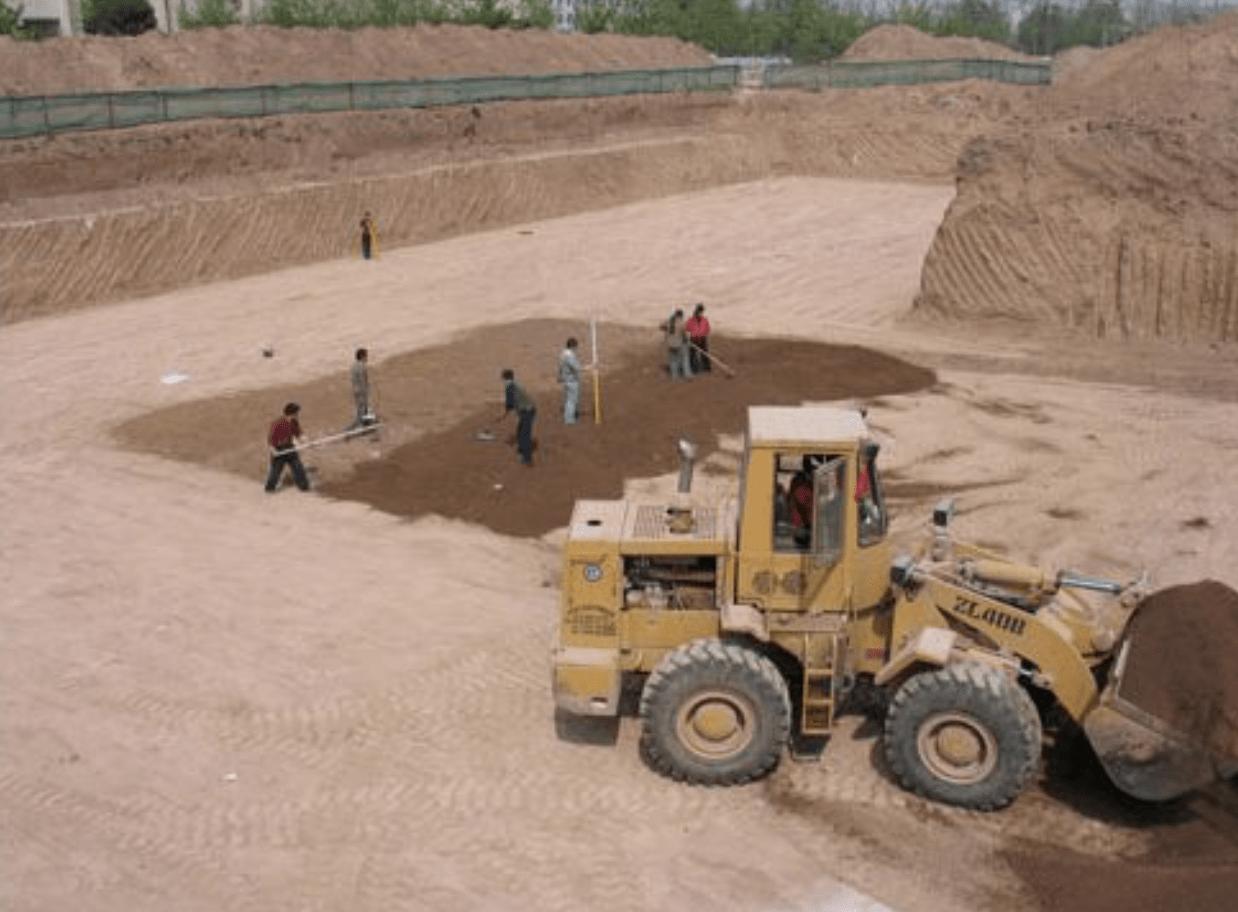

  • Process: Excavate weak soil → Compact base → Layer and compact fill material.

  • Parameters: Layer thickness (200–300mm), moisture content, and passes determined via field tests.

  • Performance: Achieves 80–100kPa bearing capacity; effective depth = 2–3m.

2. Heavy Tamping

  • Method: A 15–30kN hammer is dropped from 2.5–4.5m to densify soil.

  • Sequence: Work from edges inward, from deep to shallow areas.

  • Quality Control: Check moisture pre-compaction; validate via penetration tests.

  • Outcome: Bearing capacity reaches 100–150kPa.

3. Vibrocompaction

  • Applicability: Loose, granular soils (e.g., sandy fills).

  • Process: Vibratory plates compact soil in 1–5 min cycles (depending on composition).

  • Result: 100–120kPa bearing capacity; effective depth = 1.2–1.5m.

Quality Control & Testing

  • Field Tests:

    • Sand/gravel layers: Ring-shear test (dry density ≥ medium-dense state) or penetration tests.

    • Cohesive soils: Optimal moisture content (±2% for lime soil; ±4% for fly ash).

  • Post-Construction: Load tests to verify design compliance.

Key Considerations

  • Layer Thickness: 0.5–3.0m (balance cost vs. performance).

  • Staged Construction: Compact in layers for uniformity.

  • Groundwater: Dewater if the water table is high.

  • Sloped Bases: Step excavations for varying depths.

Conclusion

The cushion layer method is a versatile, cost-effective solution for improving shallow weak soils. Proper material selection, layer design, and compaction techniques ensure enhanced foundation performance, reduced settlement, and long-term stability.
