When it comes to soil reinforcement and slope stability, various support systems are used in construction projects. Among the most commonly used are anchor rods, anchor cables, soil nails, and anchor pipes. While these terms are often used interchangeably, they have distinct differences in design, purpose, and application. Here, we’ll break down the definitions and key differences between these elements.
Definitions
-
Anchor Rod
An anchor rod is a structural component used to transfer tension forces to stable soil or rock layers. When steel strands or high-strength steel cables are used as the material for the rod, it is referred to as an anchor cable.-
Source: Building Slope Engineering Technical Standards (GB50330-2002)
-
-
Anchor Cable
An anchor cable is a type of anchor rod made from high-strength steel strands.-
Source: Building Slope Engineering Technical Standards (GB50330-2002)
-
-

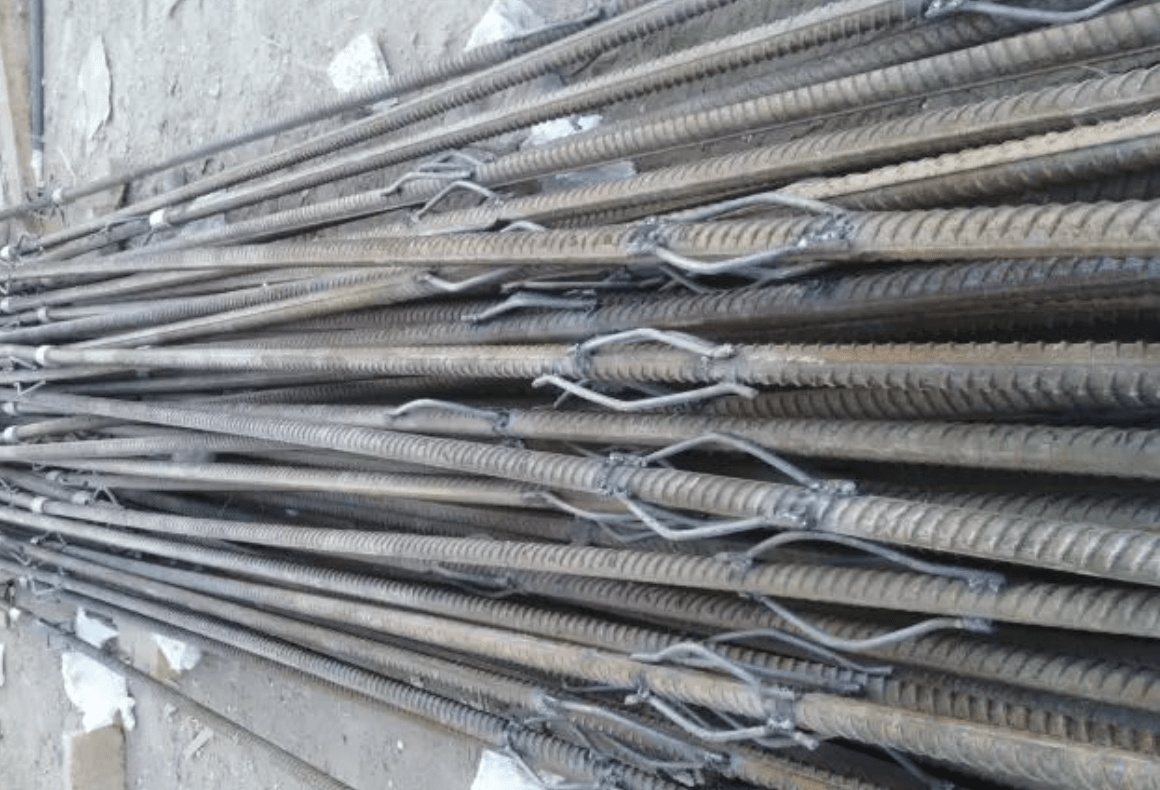

Soil Nail
A soil nail is a reinforcing element installed into the soil at shallow depths, typically used for stabilizing slopes or excavation walls. Soil nails are generally short, with diameters around 100mm, and typically consist of a single reinforcing bar.-
Source: Building Excavation Support Technical Regulations (JGJ 120-99)
-
-
Rock Anchor
A rock anchor is an anchor rod that is fixed into rock layers.-
Source: Building Slope Engineering Technical Standards (GB50330-2002)
-
-
System Anchor
A system of anchors arranged in a specific layout to stabilize the entire slope or excavation. This setup is essential to ensure the overall stability of the project.-
Source: Building Slope Engineering Technical Standards (GB50330-2002)
-
-
Anchoring
Anchoring refers to the use of anchor rods to strengthen soil or rock by transferring loads to stable layers, improving stability.-
Source: Geotechnical Engineering Terminology Standard (GB/T 50279-98)
-
-
Anchor Wall
An anchor wall is a structure that uses cement mortar to secure steel rods or steel cables in the soil to maintain wall stability and prevent soil movement.-
Source: Geotechnical Engineering Terminology Standard (GB/T 50279-98)
-
-
Soil Nail Wall
A soil nail wall is a support structure made up of soil nails and a protective concrete face that stabilizes excavation walls.-
Source: Building Excavation Support Technical Regulations (JGJ 120-99)
-
-
Anchor Pipe
An anchor pipe is essentially a soil nail that uses a steel pipe with pre-drilled grout holes.-
Source: Geotechnical Anchoring Technology Manual
-
Key Differences Between Soil Nails and Anchor Rods
-
Force Mechanism
-
Soil Nails: Passive force mechanism. The soil nail only becomes effective after the surrounding soil deforms, thus preventing further movement.
-
Anchor Rods: Active force mechanism. The rod is pre-stressed before excavation to limit excessive soil movement before any deformation occurs.
-
-
Force Distribution
-
Soil Nails: The force is distributed along the entire length of the nail, divided into two parts by the potential sliding failure surface. The front part of the nail is directed towards the sliding surface, while the rear part is directed away from it.
-
Anchor Rods: The front section of the rod is free, and the rear section is under tension. This is particularly true for non-prestressed anchor rods, where the front may not be grouted.
-
-
Fundamental Difference in Working Mechanism
-
Soil Nails: These act as reinforcement elements that improve the strength and stability of soil by using a dense arrangement of reinforcement elements. The soil nails function as the soil deforms, similar to the behavior of anchor rods once they become active.
-
Anchor Rods: These are anchoring devices that actively transfer loads from unstable surface soil or rock layers to more stable layers beneath. Through pre-stressing, anchor rods work proactively to stabilize the structure.
-
-
Application and Usage
-
Soil Nails: Soil nails are typically used for shallow soil stabilization in slopes, excavation walls, or for reinforcing soil bodies that are prone to sliding or erosion.
-
Anchor Rods: Anchor rods are typically used in deep excavation projects, where they transfer large forces from the soil surface to deep, stable layers, ensuring the overall stability of a structure.
-
Why the Terminology Matters
Understanding the differences between these reinforcement techniques is critical for proper design, cost estimation, and project execution. In some cases, soil nails may be inaccurately categorized as non-prestressed anchor rods, especially in pricing and budgeting documents. This discrepancy can lead to confusion in cost assessments, as the pricing for non-prestressed soil nails is generally lower than for anchor rods. Therefore, it’s important to use the correct terminology to avoid misunderstandings and ensure accurate project costs.
Conclusion
Anchor rods, anchor cables, soil nails, and anchor pipes all play crucial roles in geotechnical engineering, but they each have specific applications and distinct characteristics. By understanding the differences in force mechanisms, force distribution, and applications, construction professionals can make informed decisions on which method is best suited for their specific project needs.
